Nexus 7700/7000 Switches Line Cards

The Cisco Nexus 7700 Data Center switches supports more than 83 terabits per second (Tbps.), is the latest extension to the Cisco Nexus 7000 Series modular switches.

The Following Line cards are supported by Nexus 7700 Series Switches.

  • Cisco Nexus 7700 F3-Series Ethernet Module
  • Cisco Nexus 7700 M3-Series Ethernet Module
  • Cisco Nexus 7700 F2-Series Enhanced Ethernet Module

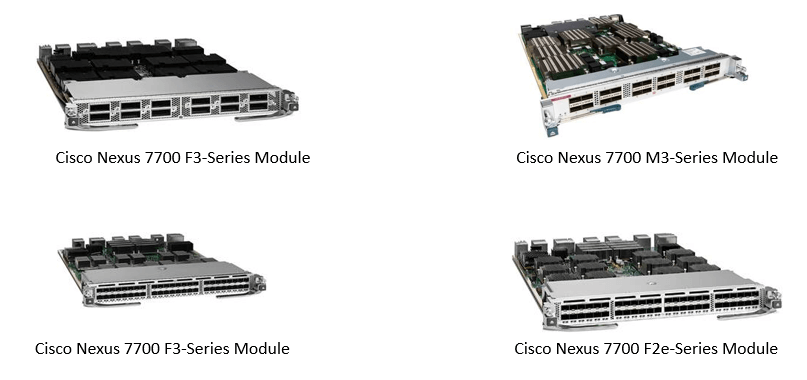

Below fig is representing the all above Nexus 7700 Line cards.

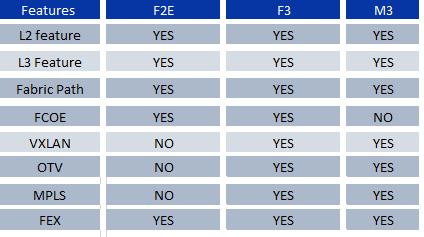

Below are the technical Specification and feature support Summery for Nexus 7700 Module switch.

Nexus 7000 Supported Line cards:

Following are the Modules mentioned below :

  • Cisco Nexus 7000 F1-Series Ethernet Module
  • Cisco Nexus 7000 F2-Series Ethernet Module
  • Cisco Nexus 7000 F2-Series Enhanced Ethernet Module
  • Cisco Nexus 7000 F3-Series Ethernet Module
  • Cisco Nexus 7000 M1-Series Ethernet Module
  • Cisco Nexus 7000 M1-Series Ethernet Module with XL
  • Cisco Nexus 7000 M2-Series Ethernet Module
  • Cisco Nexus 7000 M2-Series Ethernet Module with XL
  • Cisco Nexus 7000 M3-Series  Ethernet Module

Below fig is representing the all above Nexus 7000 Line cards.

Below are the technical Specification and feature support Summery for Nexus 7000 Module switch .
