Cloud on SaaS

Task:

  • Create a New Application Office-365 in VPN 10
  • Enable Cloud Express on new Site BR2-VEDGE1 so that this site access this Application over Direct Internet
  • Enable Cloud Express on vManage

Solution:

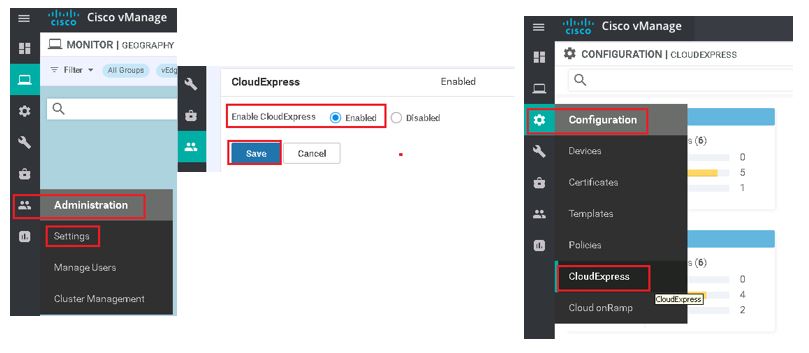

Click on Administration | Setting | Edit | Select Enable | Save

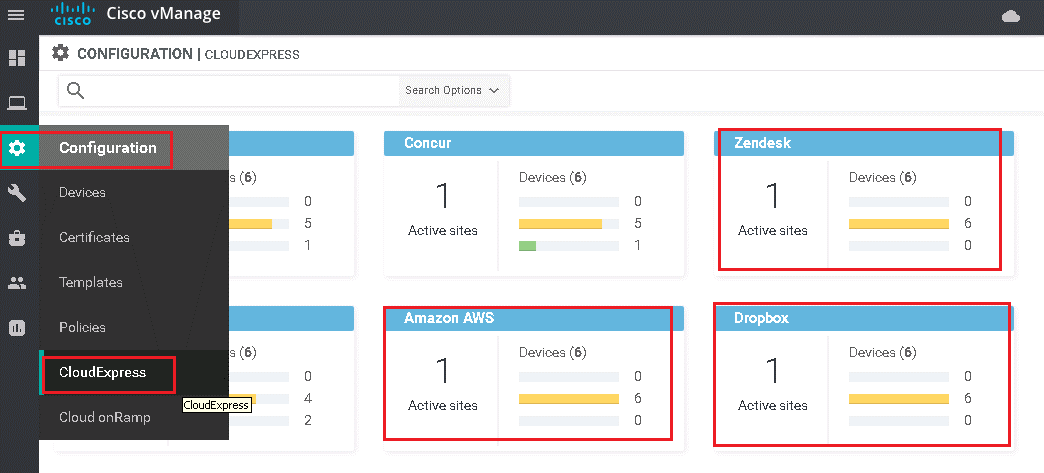

Click on Configuration | Cloud Express

You will see Some Applications in application panel to view details for that application

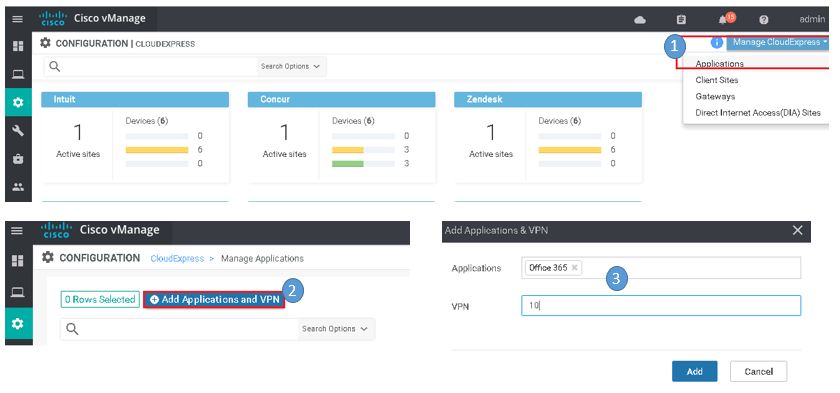

To add New Application Click on Manage Cloud Express | Select Application

Click Add Applications and VPN | Select Office 365 | Enter VPN ID 10 | Add

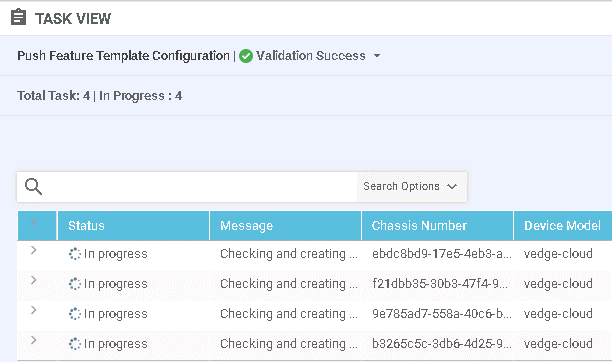

Click Save Changes and Wait until New Application configuration of device is successful.

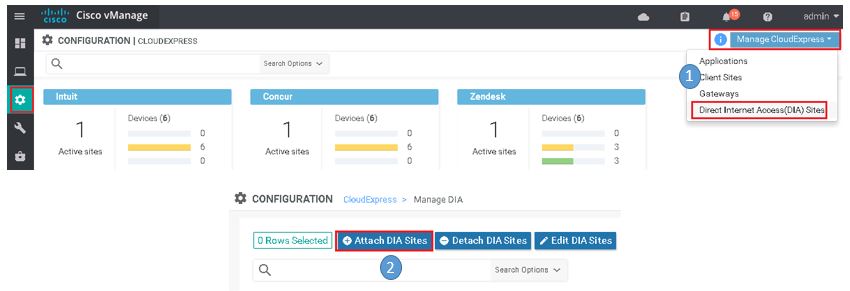

From Menu | Configuration | Cloud Express | Manage Cloud Express | Direct Internet Access Sites | Attach DIA Sites

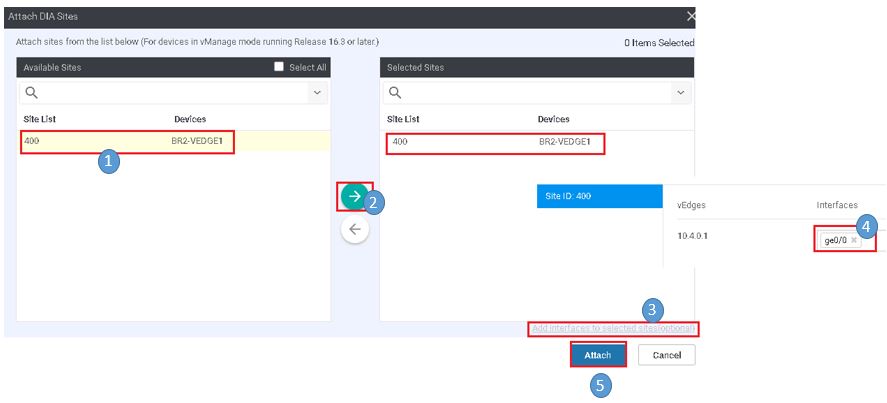

Select BR2-VEDGE1 Site and click Add interface to Selected sites | and add Interface Gi0/0 | Save Changes | Attach

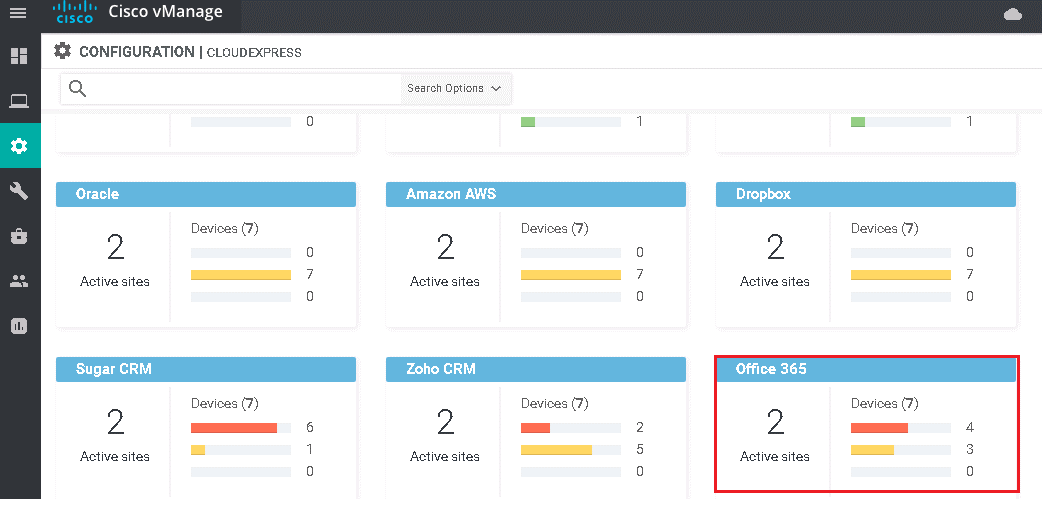

Click on Configuration | Cloud Express you will see that Office 365 application is provisioned and operational
