SD-WAN vEdge Connectivity

SD-WAN vEdge Connectivity

Posted on Jan 27, 2020 (0)

SD-WAN vEdge Connectivity

Task: In this perform the following:

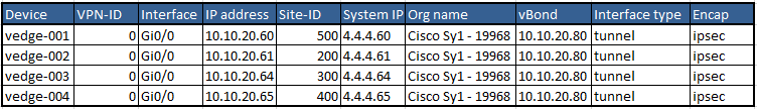

  • Verify the physical Connectivity between vEdge Sites by pinging the WAN Gi0/0 IP in VPN 0 as per given IP configuration

  • Verify the OMP protocol status and default IPsec Configuration
  • Verify to which vBond the vEdge has created Control tunnel and on which Port
  • Verify the vManage Chassis ID from any vEdge router

Topology:

Solution:

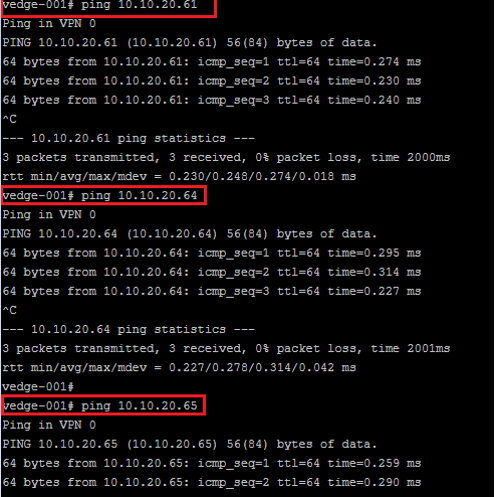

Now to Verify the Physical Connectivity among Sites, SSH to vEdge-001 router and ping the WAN IP of each vEdge Router as given below in VPN 0

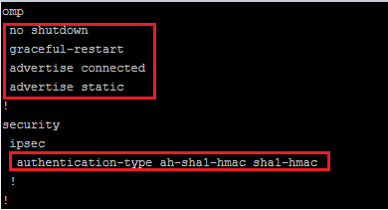

Now use show run or sh run omp command to verify the OMP protocol status. Here you will see the OMP is enabled with graceful restart feature and it is advertising the static and connected routes.

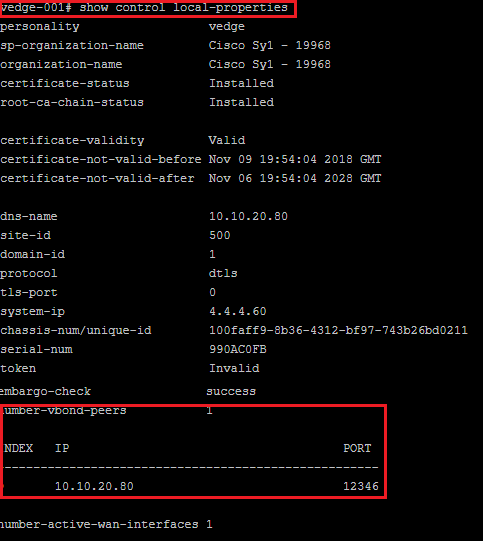

In show control local-properties command, you will see to which vBond, vEdge router has made control connection and on which port, as per output given below, it has formed DTLS connection to 10.10.20.80 and on port 12346
