A configuration group is a logical grouping of features or configurations that can be applied to one or more devices in the Cisco SD-WAN fabric. You can define and customize this grouping based on your business needs.

There are multiple benefits to using configuration groups. First is simplicity, since you can easily identify what is necessary, what is optional, and what is the recommended Cisco networking best practice. You can reuse different configuration components, which helps to simplify management. When using group configurations, you can group devices based on a shared configuration.

Supported devices and prerequisites for configuration groups:

• Configuration groups are supported only on Cisco IOS XE SD-WAN devices.

• Minimum software version for Cisco IOS XE SD-WAN is Cisco IOS XE Release 17.8.1a.

• Minimum software version for Cisco vManage is Release 20.8.1.

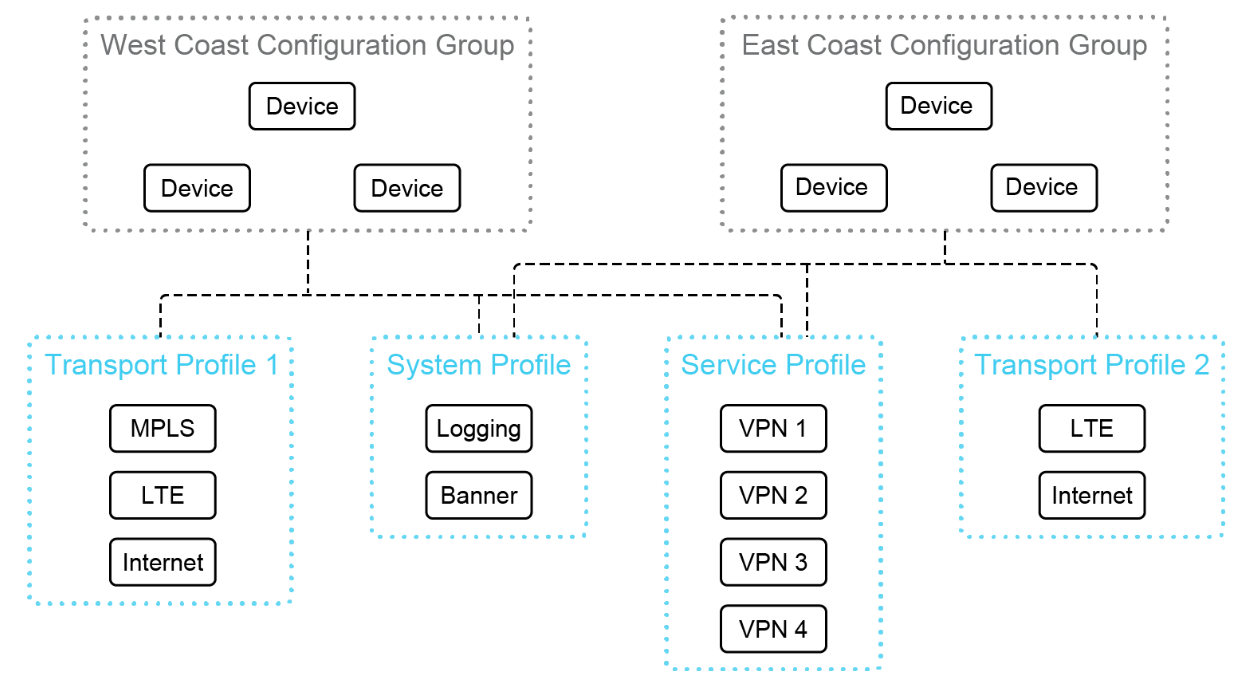

You can create configuration groups based on your business needs. For example, if your company has offices in North America on both the West Coast and East Cost and each coast has different transport needs, you can create two configuration groups, the East Coast Configuration Group and the West Coast Configuration Group. Both configuration groups can use the same system and service profiles while using different transport profiles, as shown in the figure.

Configuration Group Structure

Configuration Group Workflows

The Create Configuration Group workflow provides a simple user interface divided into five sections where the user can define system and network settings to provision a simple single WAN Edge router site. The first section of the workflow is the site type. Right now, only the single router site type is supported but additional site types should be available in the future. The second section of the workflow is the site settings, where you define the local user password and system banners. The third and fourth sections are used to configure the WAN network, including interfaces and routing. The last section is used to configure the service-side networks, including VPNs, interfaces, and routing.

payment]/payment]

The Create Configuration Group workflow generates the following components:

• The configuration group

• Three basic feature profiles:

  1. System profile: containing system settings such as site-id, system-ip, authentication, authorization, and accounting (AAA) services, or logging

  2. Transport and management profile: containing the network settings for the transport and management VPNs

  3. Service profile: containing network settings for the service-side VPNs, such as the VPNs, interfaces, switching, or routing

You can modify or add to these settings as you wish. You can use pre-populated or custom values that fit your business needs.

Deploying Configuration Groups

Configuration group deployments require two steps. In the first step, you must provide the variable values for any device-specific parameters, such as system-ip or interface IP addresses. After you provide all the variable values, in the second step, you can preview the deployment configuration and compare it to the current running configuration on the device. If the candidate configuration meets your expectations, you can deploy the configuration to the devices

Configuration Group Feature Profile Overview

A feature profile is a flexible building block of configurations that can be reused across different configuration groups. You can create profiles based on features that you need for your environment and then put the profiles together to complete a device configuration. Feature profiles consist of features that are the individual capabilities that you want to share across different configuration groups.

Cisco vManage groups individual features into the following feature profiles:

• System Profile

• Transport and Management Profile

• Service Profile

• Security Profile

• Policy Profile

• CLI Profile

• Other Profile

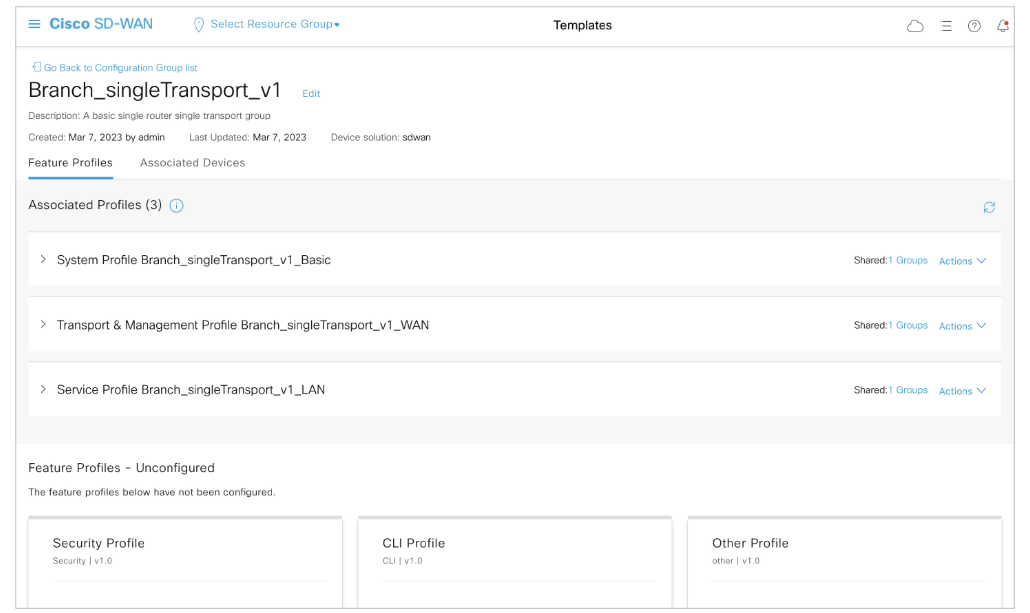

In the figure, notice that there are currently three feature profiles associated to the Branch_singleTransport_v1 configuration group: a system feature profile, a transport and management feature profile, and a service feature profile. Also notice that there are several unconfigured feature profiles (security, CLI, other)
