ACI Configure Three-Tier Application Profile

ACI Configure Three-Tier Application Profile

Posted on Jan 24, 2020 (0)

LAB: ACI Configure Three-Tier Application Profile

Topology:

TASK: Follow the below following task to complete the ACI Application Profile Configuration.

TASK1: Configure Application Profile with name DCLessons_AP_Profile

  • Create the DB_EPG in BD DCLessons_BD and apply contracts DCLessons-Contract-DB-APP on Provided side.
  • Create the App_EPG in BD DCLessons_BD and apply contracts DCLessons-Contract-DB-APP on Consumed side and Contract DCLessons-Contract-APP-WEB on provided side.
  • Create the Web_EPG in BD DCLessons_BD and apply contracts DCLessons-Contract-APP-WEB on consumed side.

Solution:

Task1: Configure Application Profile with name DCLessons_AP_Profile

  • Go to your Tenant DCLessons | Application Profiles.
  • Right-click the Application Profiles and then select Create Application Profile

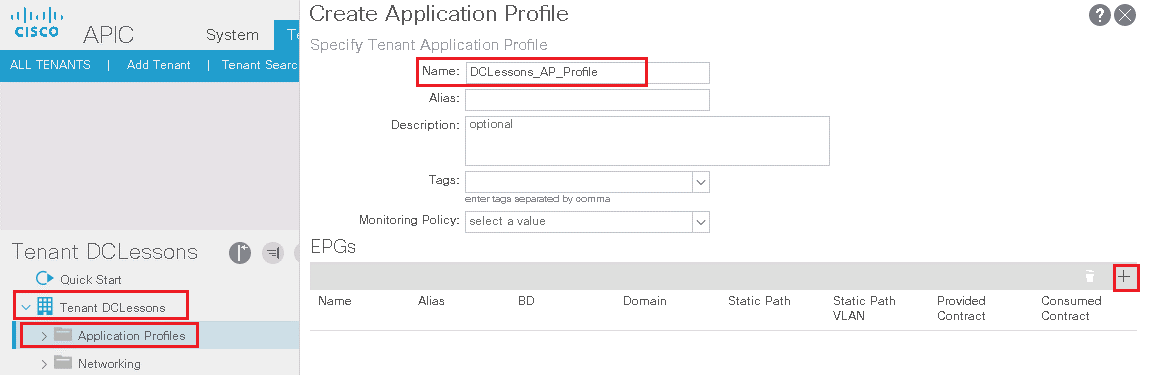

  • In the Create Application Profile wizard, In the Name field type DCLessons_AP_Profile

Create the DB_EPG in BD DCLessons_BD and apply contracts DCLessons-Contract-DB-APP on Provided side.

  • In the EPG Subsection, Click + Sign to create one or More EPG.

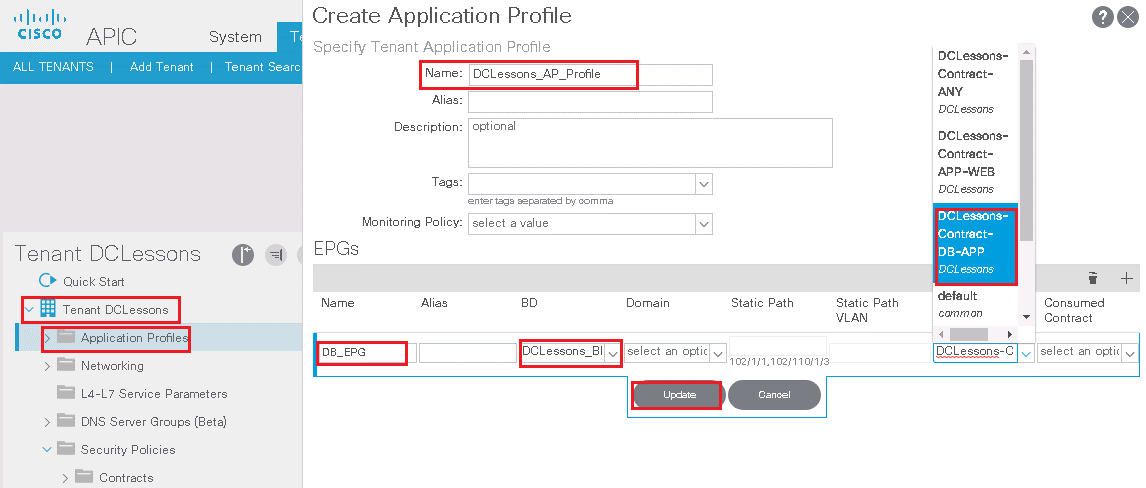

  • Provide Following information to create DB_EPG
  • Name: DB_EPG, BD: DCLessons_BD, In Provided Contracts select DCLessons-Contract-DB-APP
  • Click UPDATE

Create the App_EPG in BD DCLessons_BD and apply contracts DCLessons-Contract-DB-APP on Consumed side and Contract DCLessons-Contract-APP-WEB on provided side.
