ACI Configure Filters and Contracts

ACI Configure Filters and Contracts

Posted on Jan 24, 2020 (0)

ACI Configure Filters and Contracts

Topology:

TASK: Follow the below following task to complete the ACI Filters and Contracts

TASK1: Configure Filters as per following information:

  • DCLessons-FILETR-ANY, Name: DCLessons-ANY, Ethertype: unspecified.
  • DCLessons-FILETR-ICMP, Name DCLessons-ICMP, Ethertype: IP, IP protocol: ICMP
  • DCLessons-FILTER-80, Name DCLessons-80, Ethertype: IP, IP protocol: TCP, Source Port 1012 to 65535 Destination port 80 to 80

TASK 2: Configure Contracts as per following information

  • Contract Name: DCLessons-Contract-ANY, Subject Name: DCSUBJECT-ANY, Apply Both Direction: Checked and Reverse Filter ports: Checked and select filter DCLessons-FILETR-ANY.
  • Contract Name: DCLessons-Contract-DB-APP, Subject Name: DCSUBJECT-ANY, Apply Both Direction: Checked and Reverse Filter ports: Checked and select filter DCLessons-FILETR-ANY.
  • Contract Name: DCLessons-Contract-APP-WEB, Subject Name: DCSUBJECT-ANY, Apply Both Direction: Checked and Reverse Filter ports: Checked and select filter DCLessons-FILETR-ANY.

Solution:

TASK1: Configure Filters as per following information:

  • DCLessons-FILETR-ANY, Name: DCLessons-ANY, Ethertype: unspecified.

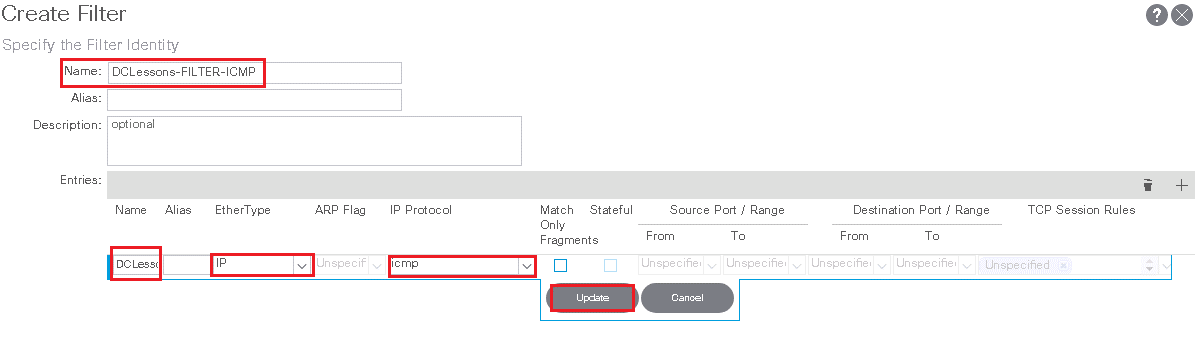

  • DCLessons-FILETR-ICMP, Name DCLessons-ICMP, Ethertype: IP, IP protocol: ICMP

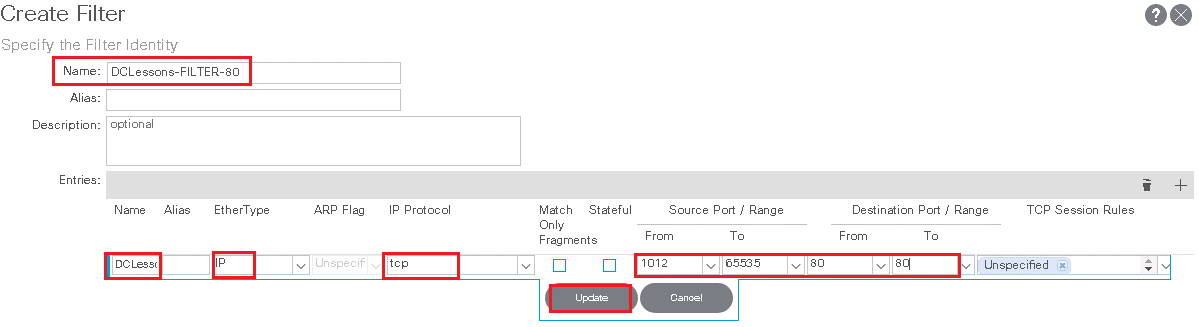

  • DCLessons-FILTER-80, Name DCLessons-80, Ethertype: IP, IP protocol: TCP, Source Port 1012 to 65535 Destination port 80 to 80

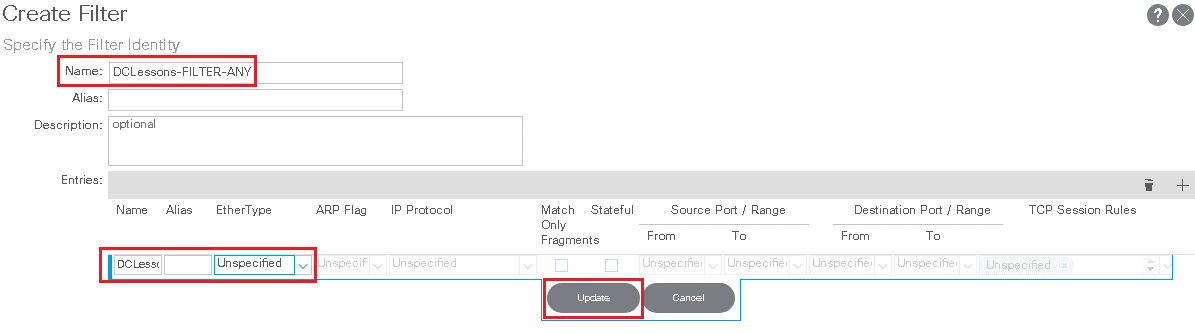

 Configure filter DCLessons-FILETR-ANY, Name: DCLessons-ANY, Ethertype: unspecified

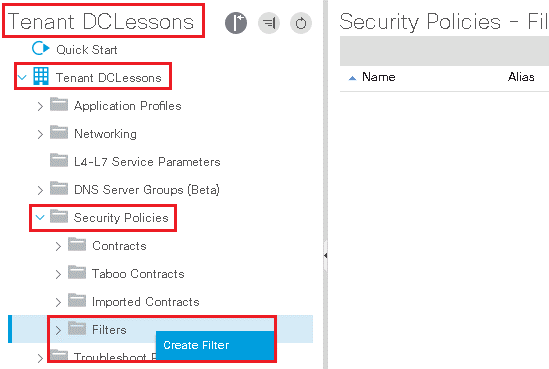

  • Go to your Tenant DCLessons | Security Policies | Filters.
  • Right-click the Filters and then select Create Filter

  • In Create Filter wizard configure following filter DCLessons-FILETR-ANY, Name: DCLessons-ANY, Ethertype: unspecified

  • Click the UPDATE button. Click the SUBMIT button to complete the Create Filter wizard.Repeat the previous three steps to configure rest two Filters as per task requirement.

Verification:


Comment

    You are will be the first.
