Cisco UCS Mezzanine Adapters

Mezzanine Adapters

Mezzanine adapters are also called as Virtual Interface Cards (VICs). These VICs cards are used for both B series serves and –Series rack servers.

These virtual cards can be configured as Ethernet (vNIC) or Fibre Channel (vHBA) devices. All these virtualization-optimized VIC also support VM-FEX technology.

Cisco 1300 VIC, series supports UCS 6200 and UCS 6300 Series fabric Extenders, Whereas VIC 1200 series supports only UCS 6100 and UCS 6200 Series FI.

VIC 1300 Series support PCIe Gen 3.0 for greater bandwidth with network offload support of NVGRE and VXLAN for enhanced performance and can create 256 NICs or HBAs without requiring SR IOV support from hypervisor or Operating Systems.

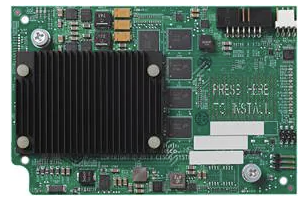

UCS Third Generation VIC 1380

Below are the Specification of VIC 1380:

• Supports 256 vNICs or vHBA interfaces
• VM-FEX support for virtualized environment
• Hardware Failover without OS driver
• 80 GB network throughput
• Mezzanine form factor
• Compatibility with UCS M3 and M4 blade server.

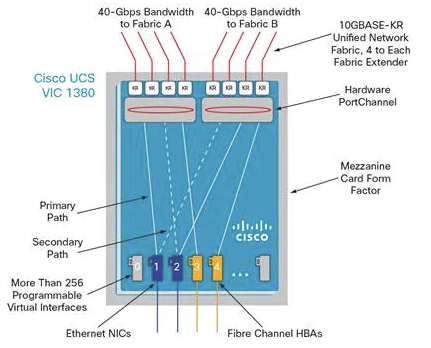

Cisco UCS VIC 1380 Architecture

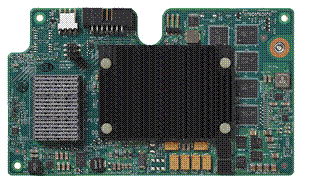

UCS Third Generation VIC 1340

 Below are the Specification of VIC 1340:

• Supports 256 vNICs or vHBA interfaces
• VM-FEX support for virtualized environment
• Hardware Failover without OS driver
• 40-80 GB network throughput
• Modular LOM form factor
• Compatibility with UCS M3 and M4 blade server.

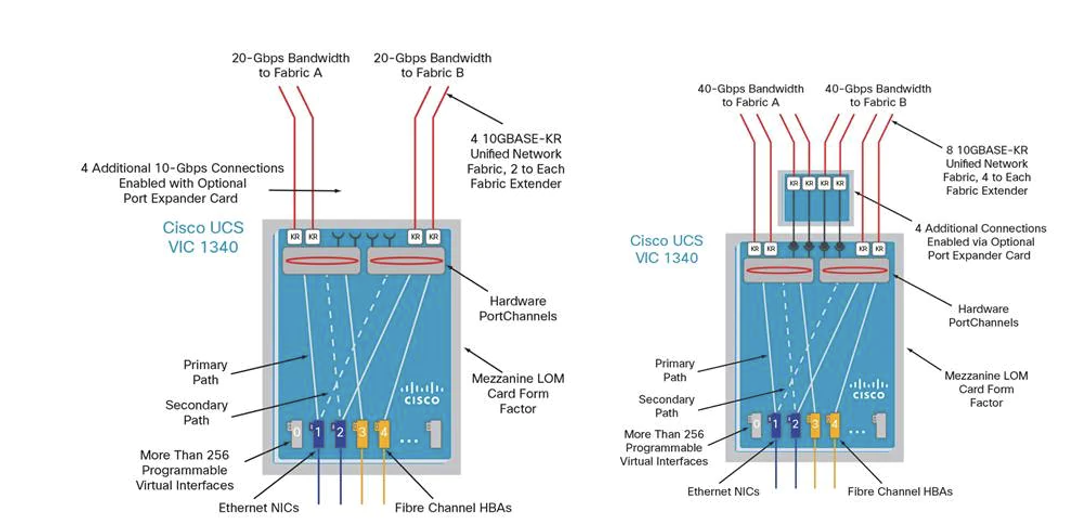

Cisco UCS VIC 1340 Architecture

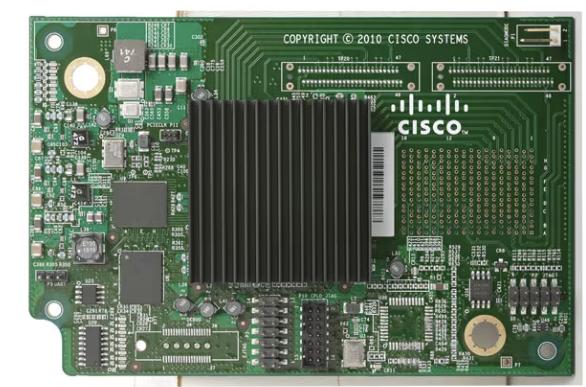

UCS second Generation VIC 1280

Below are the Specification of VIC 1280:

• Supports 256 vNICs or vHBA interfaces
• VM-FEX support for virtualized environment
• Hardware Failover without OS driver
• 80 GB network throughput
• Mezzanine form factor
• Compatibility with UCS M2 (B230, B440) and M3 blade servers.

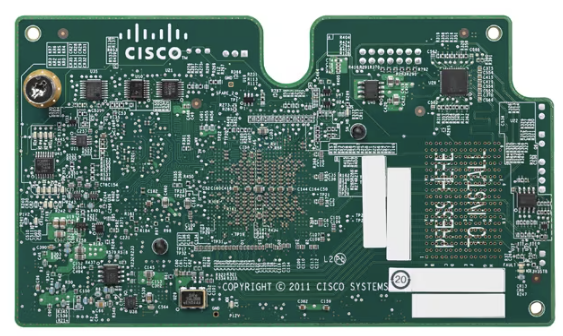

UCS second Generation VIC 1240

Below are the Specification of VIC 1240:

• Supports 256 vNICs or vHBA interfaces
• VM-FEX support for virtualized environment
• Hardware Failover without OS driver
• 40 GB network throughput with optional 80 GB using optional port expander in mezzanine slot
• LAN on Motherboard form factor
• Compatibility with UCS M3 blade servers.

VIC for rack Mount Servers

VICs are available as PCIe cards. All new VICs provide dynamic virtual vNIC or vHBA interfaces for server-side connectivity.
