BigIP-F5 iRule Concepts

iRules allow administrators to customize how traffic is processed within the BIG-IP system. Instead of relying only on default load-balancing behavior, iRules can inspect requests, evaluate conditions, and make real-time decisions such as redirecting users, modifying headers, selecting pools, or enforcing security policies.

iRules follow an event-driven architecture. Each iRule is triggered by specific traffic events such as HTTP_REQUEST, CLIENT_ACCEPTED, or SERVER_CONNECTED.

When the defined event occurs, the iRule executes Tcl-based logic to evaluate conditions and perform actions such as redirecting traffic, modifying headers, or manipulating packets.

Operators define the decision-making logic inside iRules.

Relational operators such as contains, equals, matches, and starts_with are used to evaluate header values, URIs, IP addresses, and other traffic attributes.

Logical operators such as and, or, and not combine multiple conditions, allowing precise traffic control and flexible rule design.

Pool-based selection allows traffic to be dynamically routed based on request attributes.

For example, an iRule can inspect the User-Agent header and direct Internet Explorer users to one pool and Mozilla users to another pool.

This method is commonly used for content switching, device-based routing, and application optimization in production environments.

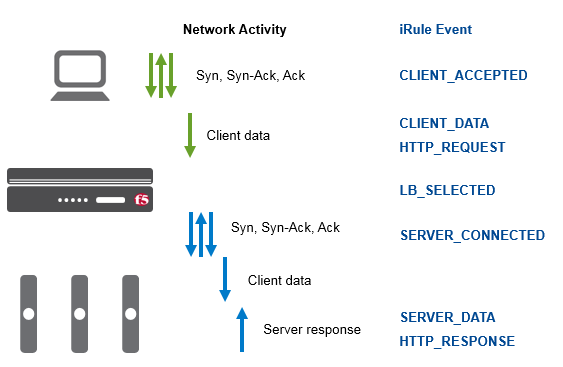

iRule events are categorized based on where they occur in the traffic flow.

Network-level events: IP, TCP, UDP, SCTP

Application-level events: HTTP, SIP, RTSP, DNS

Security and access events: APM, ASM, CLIENTSSL, SERVERSSL

These event groups help engineers write precise and context-aware rules at the appropriate processing stage.

This course introduces iRule syntax, operators, and event handling fundamentals.

To master traffic steering, header inspection, dynamic pool selection, and advanced scripting through practical lab scenarios and production use cases, you can enroll in the complete course.
