Configure HTTP Compression Profile

Configure HTTP Compression Profile

Posted on May 26, 2021 (0)

LAB: Configure HTTP Compression

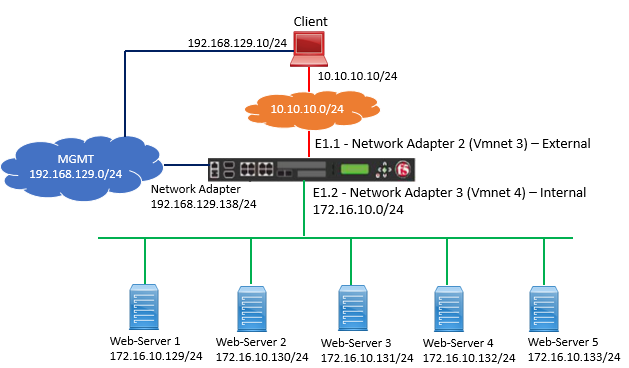

Topology:

Task:

Configure new HTTP Compression profile, and assign it to Virtual Sever and then observe its behavior.

Solution:

Follow below task in order to complete the task mentioned above.

Testing With Out Compression

Go to Local Traffic | Pools | Pool list | Create New Pool, With Name: Compression pool

Use below figure to configure Compression Pool in correct manner

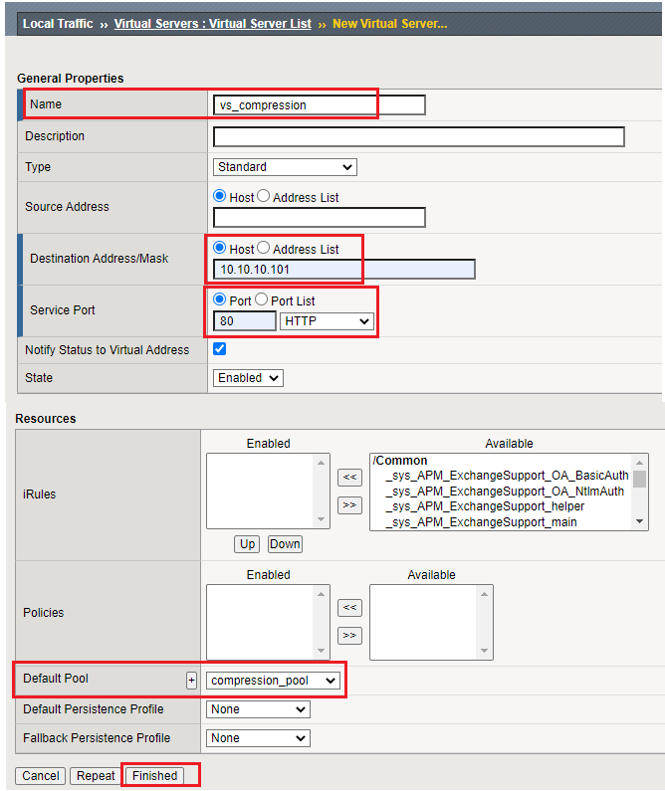

Now Go to Local Traffic | Virtual Server | Click Create New Virtual Server with name vs_compression.

Configure the New Virtual Server as per below figure correctly

Verification without Compression

Go to Browser and access http://10.10.10.100/compress.html

Go to Statistics | Module Statistics | Local Traffic | and select type: Pool, Select compression pool and observe the Bits Out value: 3.9K

Refer below figure to understand correctly

Configure Compression Profile

Go to Local Traffic | Profiles | Services | HTTP Compression | Create new HTTP Compression profile.
