Configuring Fallback Host

LAB: Configure Fallback Host

Topology:

Task:

Configure Fallback Host so that if server is not available, the traffic is diverted to another Website.

Solution:

Follow below task in order to complete the task mentioned above.

Configuring fallback Host:

Go to Local Traffic | Profiles | Services | HTTP | and Click Create

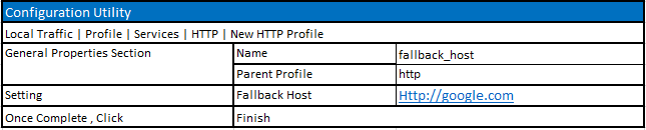

Configure below setting as per below figure

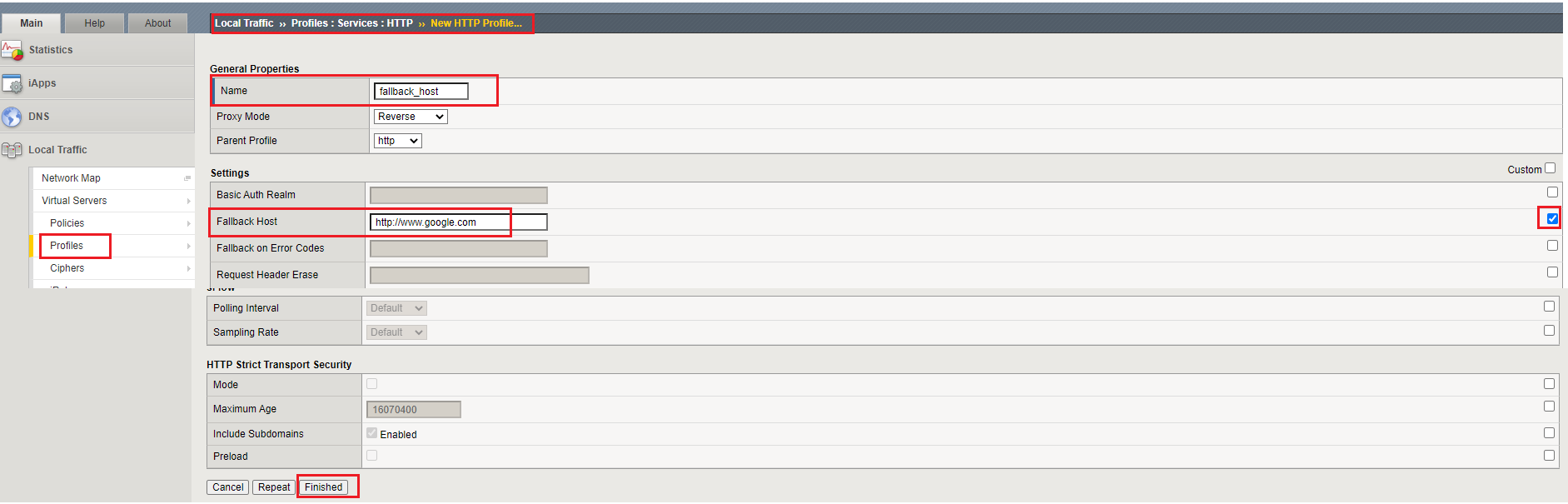

In order to configure above setting correctly, refer figure mentioned below.

Configure Virtual Server

Modify the Virtual Server, as per below setting

Go to Local Traffic | Virtual Server | Virtual Server List | Select vs_http

Go to Configuration section | Select HTTP Profile (Client): fallback host
