LAB: Creating Virtual Servers & Pools

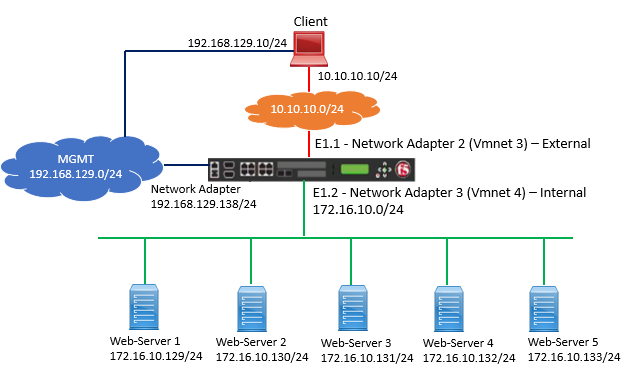

Topology:

Task:

  • Create the POOL and Http Virtual Server
  • Assess the Client request on virtual Server
  • Observe the Traffic pattern as per data received on F5

Solution:

Follow below task in order to complete the task mentioned above.

Creating a Pool

Open to F5 GUI, Navigate to Local Traffic | Pools | Pool List and on right Click Create

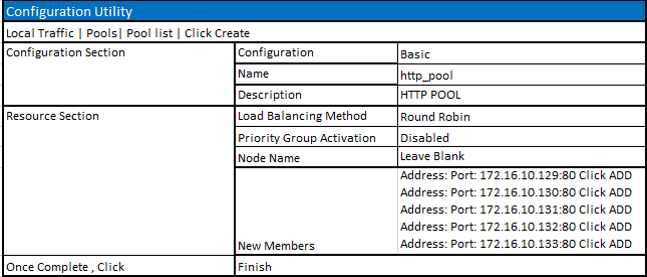

Use below setting in order to do following configuration.

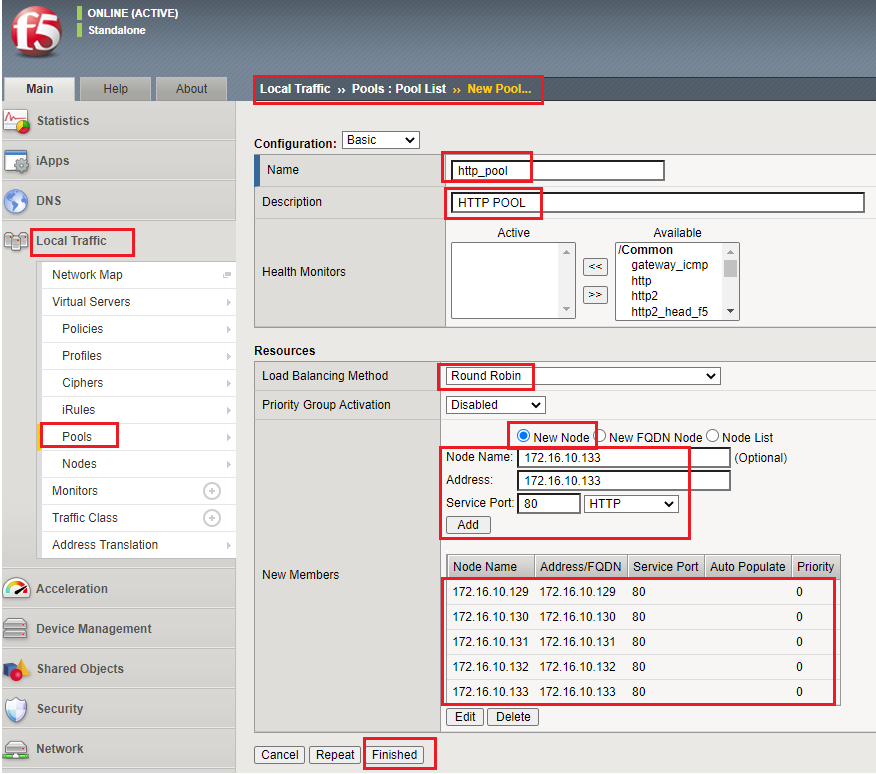

Follow below figure to complete the above task correctly

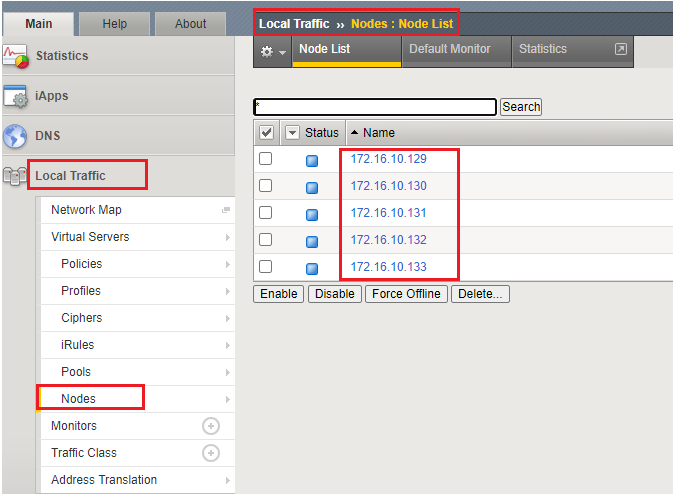

Go to Local traffic | Nodes | Node List

Here you will see, all the nodes defined in pool list created.

Creating Virtual Server

Go to Local traffic | Virtual Server | and click Create
