LAB: Creating VPC Peering Architecture

LAB: Creating VPC Peering Architecture

Posted on Jun 12, 2023 (0)

LAB: Creating VPC Peering Architecture

Task:

  • Create a VPC Network dclessons-vpc-1
  • Create an another VPC network
  • Create a bidirectional VPC peering between them

Solution:

 Task 1: Create a First VPC Network

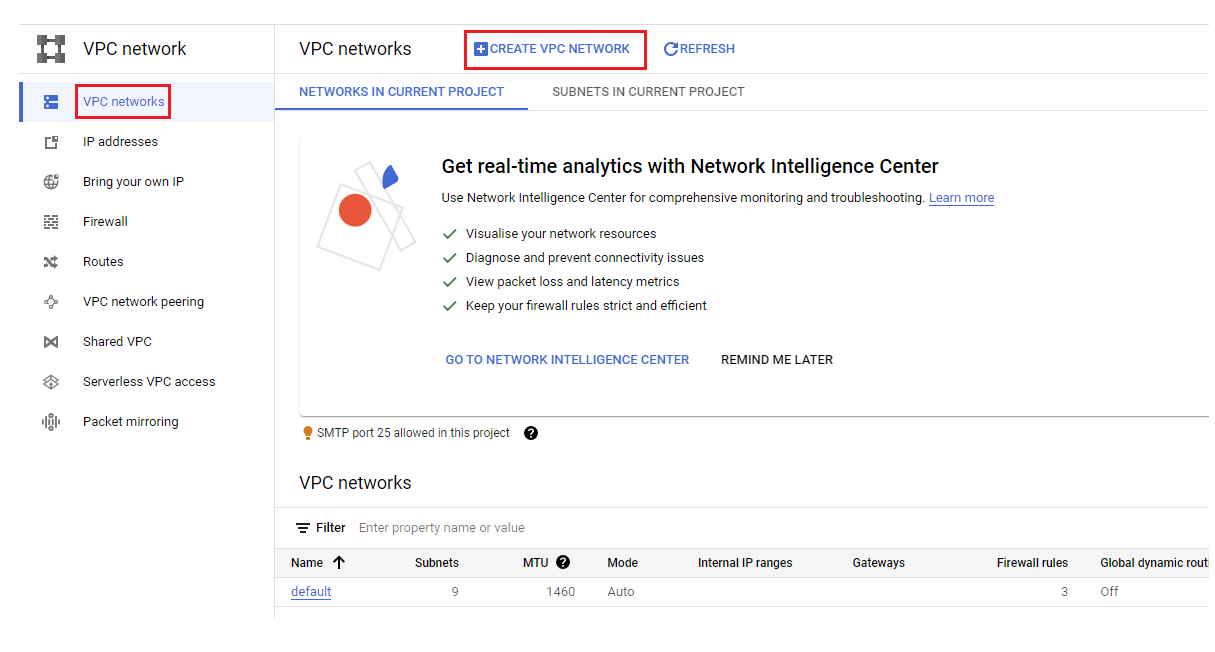

Under Main menu | Under VPC Network | Click Create VPC Network

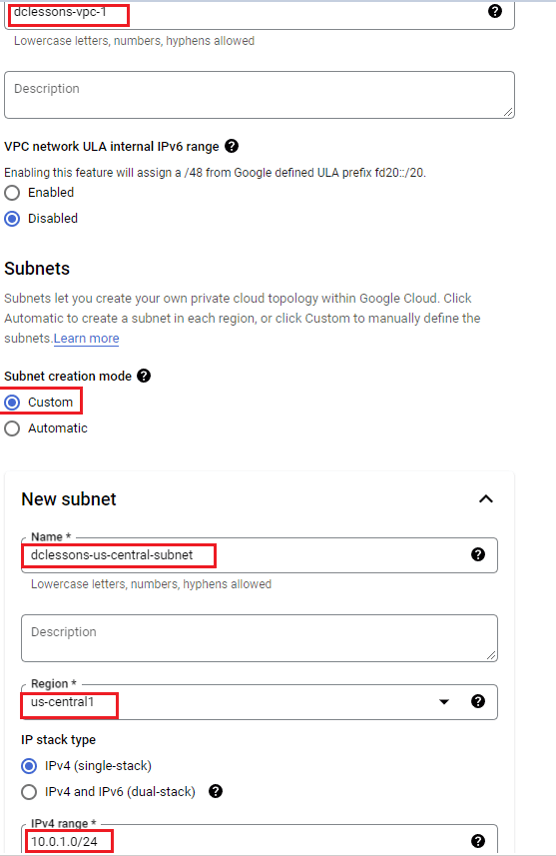

Under Create VPC Network | Name: dclessons-vpc-1 | Subnets: Subnet creation mode: Select custom | New Subnet: Name: dclessons-us-central-subnet | Region: us-central1 , IPv4 stack type: IPv4, IPv4 range: 10.0.1.0/24

Task 2: Create another VPC network

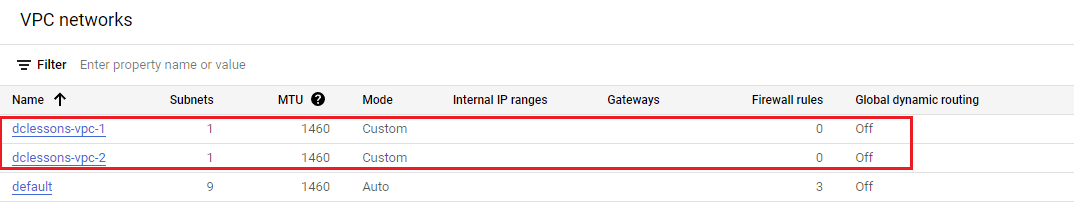

Create another VPC name: dclessons-vpc-2 with different subnet (10.0.2.0/24) , Region ( us-east)  as shown in below figure

Task 3: Configure VPC peering Connection

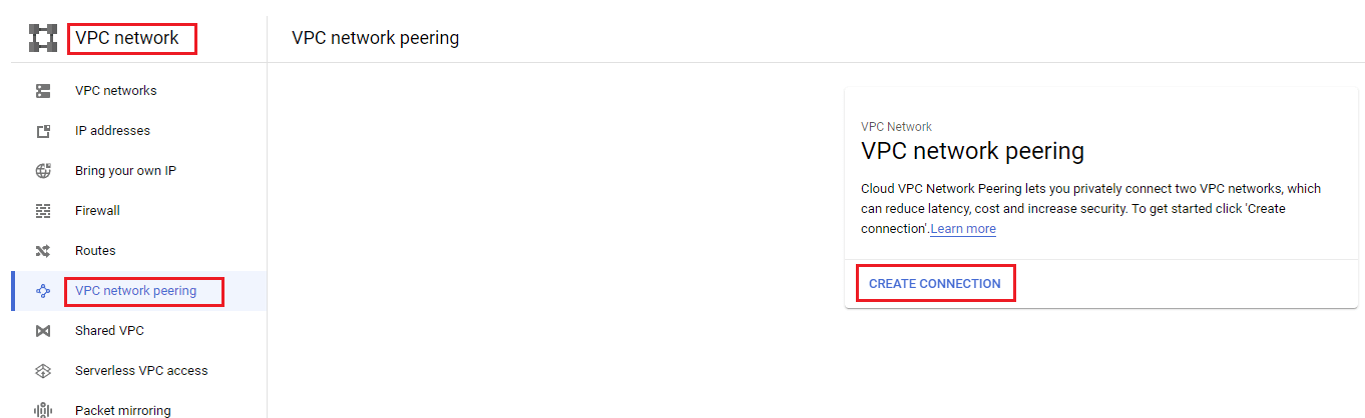

Under VPC network | VPC Network Peering | Click Create Connection

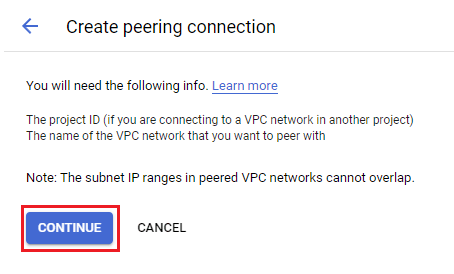

Under Create Peering Connection | Click Continue

Follow the Procedure as mentioned in below figure
