LAB: Communicate with Internet using Cloud NAT

LAB: Communicate with Internet using Cloud NAT

Task:

• Configure and Create a Cloud Router
• Configure and Create a Cloud NAT
• Create a VM instance and Test the internet Traffic.

Solution

Task 1: Configure a Create Cloud Router:

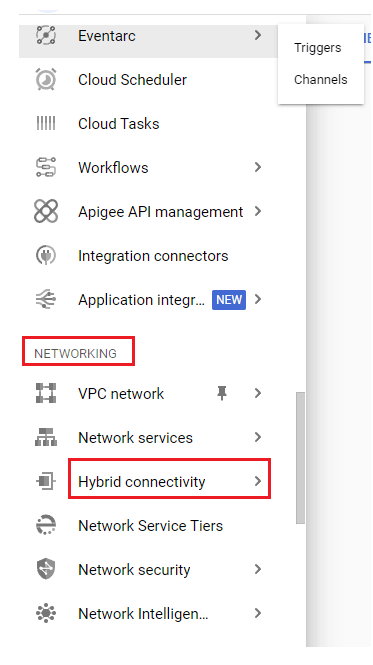

In the Left menu | Networking | Hybrid Connectivity

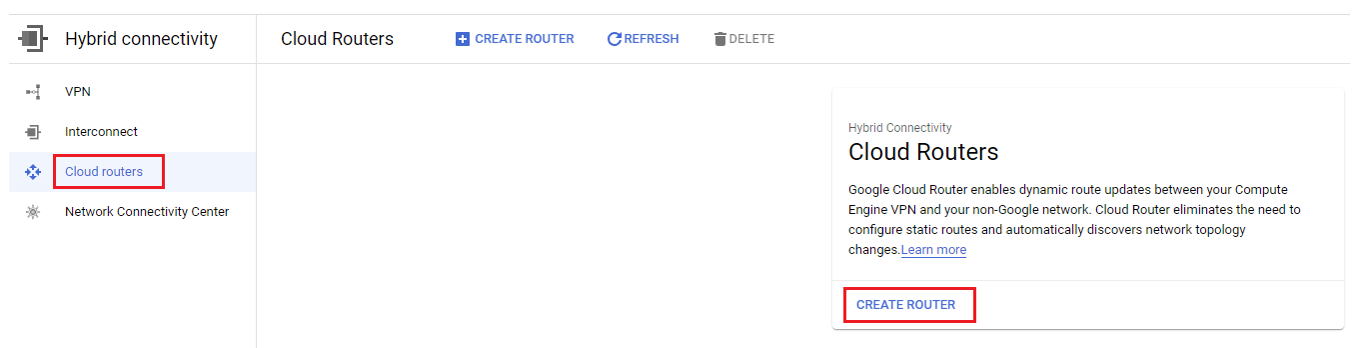

Under Hybrid Connectivity | Cloud Router | Create Router

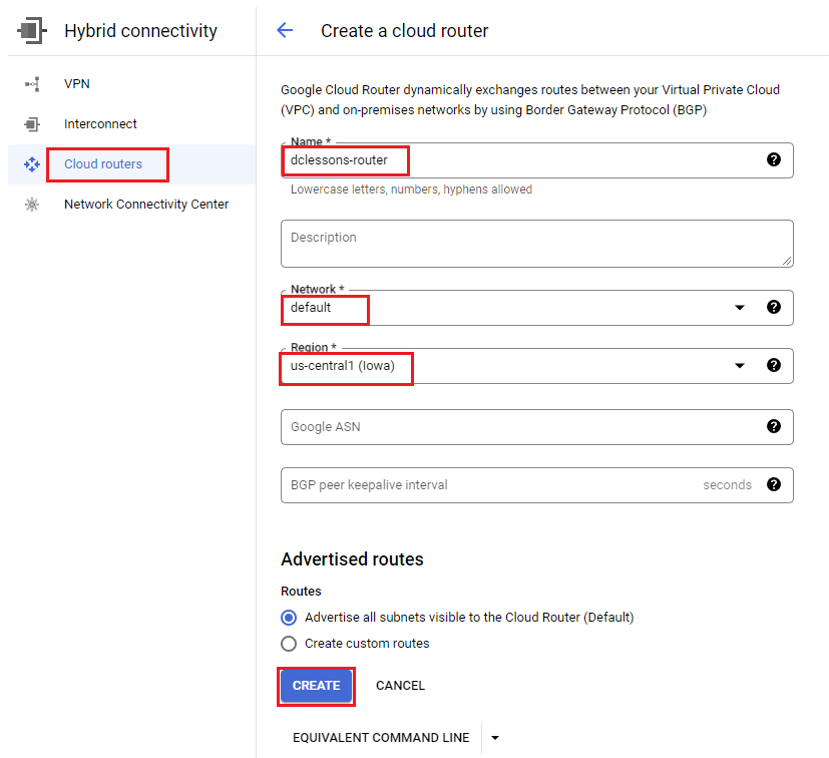

Under Create a Cloud Router | Name: dclessons-router | Network: default, Region: us-central1(lowa) | Click Create

Task 2: Configure a Cloud NAT

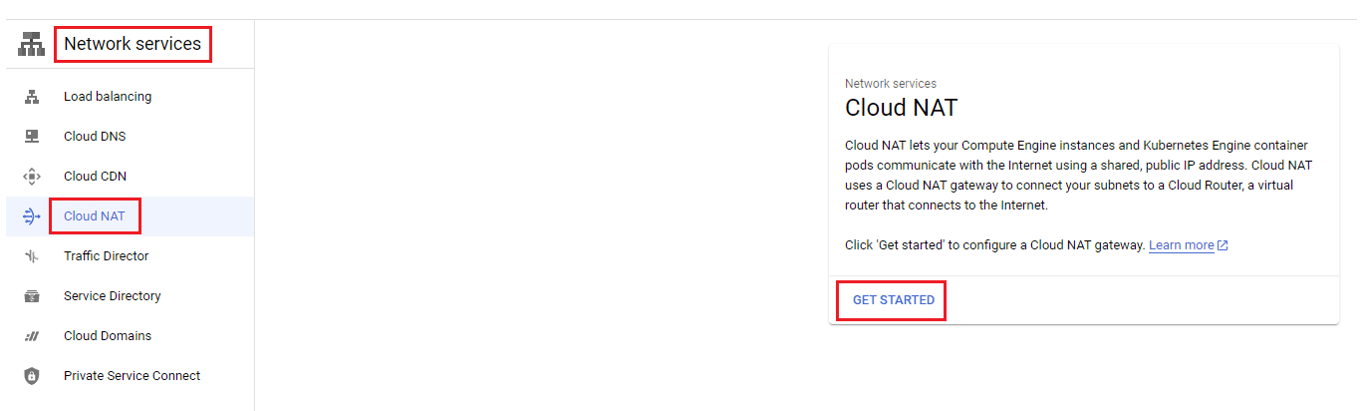

Under Network Services | Cloud NAT: GET Started

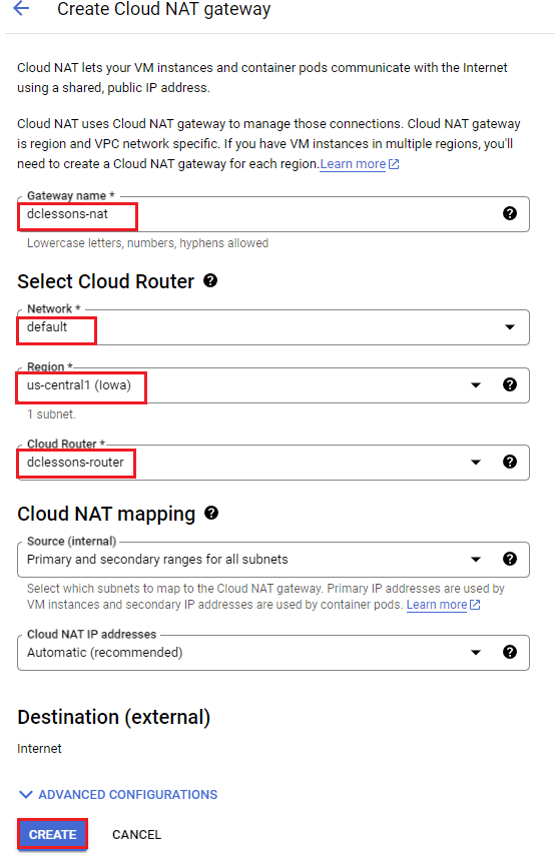

Under create Cloud NAT Gateway | Gateway name: dclessons-nat | Under Select Cloud Router: Network: default, Region: us-central1(lowa), Cloud Router: Select dclessons-router| Select CREATE

Task 3: Create a VM instance

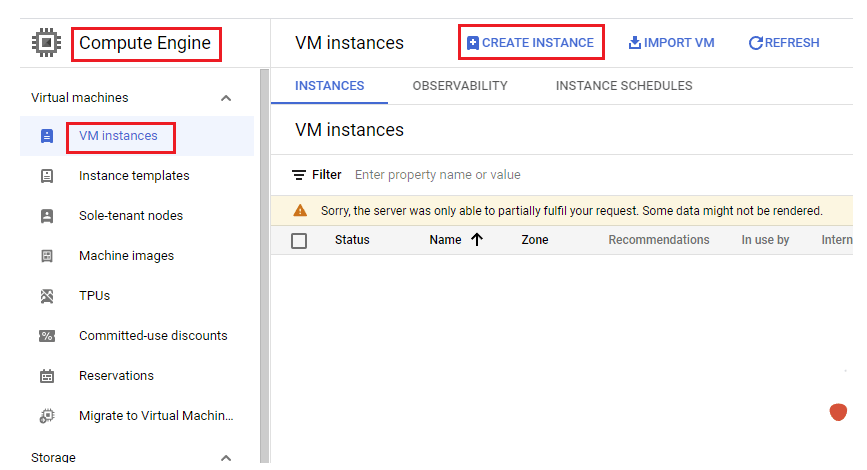

Under Compute Engine | VM Instance : Create Instance

Under Create an Instance | New Instance | Name: dclessons-instance-1, Region: us-central1(lowa) , Zone: us-central1-a | Machine Configuration : General Purpose: Series: S1 , Machine Type:  n1-standard-1.
