How to Create Template for CloudFormation

How to Create Template for CloudFormation

Posted on Jan 17, 2020 (0)

How to Create Template for CloudFormation

To use Cloud Formation stack , we have to create the Template which may be in JSON or YAMI format.

Task :

  • Create the JSON template for VPC.
  • Create the JSON template for Subnets
  • Create the JSON template for Internet gateway
  • Create the JSON template for NAT gateway

Steps:

Format for VPC:

{
"Type" : "AWS::EC2::VPC",
"Properties" : {
"CidrBlock" : String,
"EnableDnsSupport" : Boolean,
"EnableDnsHostnames" : Boolean,
"InstanceTenancy" : String,
"Tags" : [ Resource Tag, ... ]
}
}

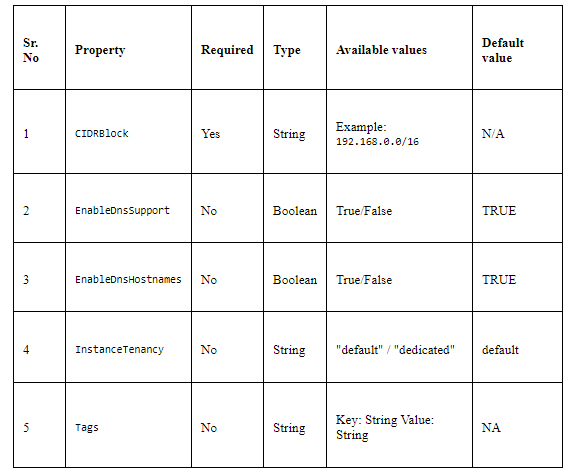

Values to be supplied in VPC Template:

Example:

{
"AWSTemplateFormatVersion" : "2010-09-09",
"Resources" : {
"VPCTesting" : {
"Type" : "AWS::EC2::VPC",
"Properties" : {
"CidrBlock" : "10.1.0.0/16",
"EnableDnsSupport" : "false", "EnableDnsHostnames" : "false", "InstanceTenancy" : "dedicated",
"Tags" : [ {"Key" : "Name", "Value" : “VPC-Dev"} ]
}
}
}
}

Format for Subnet Creation:

{
"Type" : "AWS::EC2::Subnet",
"Properties" : {
"AvailabilityZone" : String,
"CidrBlock" : String,
"MapPublicIpOnLaunch" : Boolean,
"Tags" : [ Resource Tag, ... ],
"VpcId" : String
}
}

Format for Internet Gateway:

{
"Type" : "AWS::EC2::InternetGateway",
"Properties" : {
"Tags" : [ Resource Tag, ... ]
}
}

Example:

"InternetGateway" : {
"Type" : "AWS::EC2::InternetGateway",
"Properties" : {
"Tags" : [ "Key" : "Name", "Value" : { "Ref" : "AWS::StackName"} ]
}
}

The format for Elastic IP :

{
"Type" : "AWS::EC2::EIP",
"Properties" : {
"InstanceId" : String,
"Domain" : String
}
}

Example:

"EIP" : {
"Type" : "AWS::EC2::EIP",
"Properties" : {
"Domain" : "vpc"
}
}

The format for NAT Gateway:

{
"Type" : "AWS::EC2::NatGateway",
"Properties" : {
"AllocationId" : String,
"SubnetId" : String
}
}

Example:

"NATGateway" : {
"Type" : "AWS::EC2::NatGateway",
"DependsOn": "VPCGatewayAttach",
"Properties" : {
"AllocationId" : { "Fn::GetAtt" : ["NATGatewayEIP", "AllocationId"]},
"SubnetId" : { "Ref" : "PublicSubnet"}
}
}

When ever a JSON script is ceated then it can be tested  weather it is in proper format or not:

Testing the JSON template

There are many tools available for JSON format testing, for example: https://jsonlint.com/.
