LAB: Configure End to End VPC Endpoint Service

LAB:Configure End to End VPC Endpoint Service

Set up an end-to-end connection between two VPC’s (Services Provider and customer) using Endpoint service. In this lab, we will be creating a service provider VPC with a public subnet which contains a Network load balancer with EC2 Instance having a sample webpage and then create a VPC Endpoint service for the Network Load balancer.

For the customer side, we will be creating a Customer VPC with a public subnet and create a VPC Endpoint and test the connectivity using an EC2 Instance.

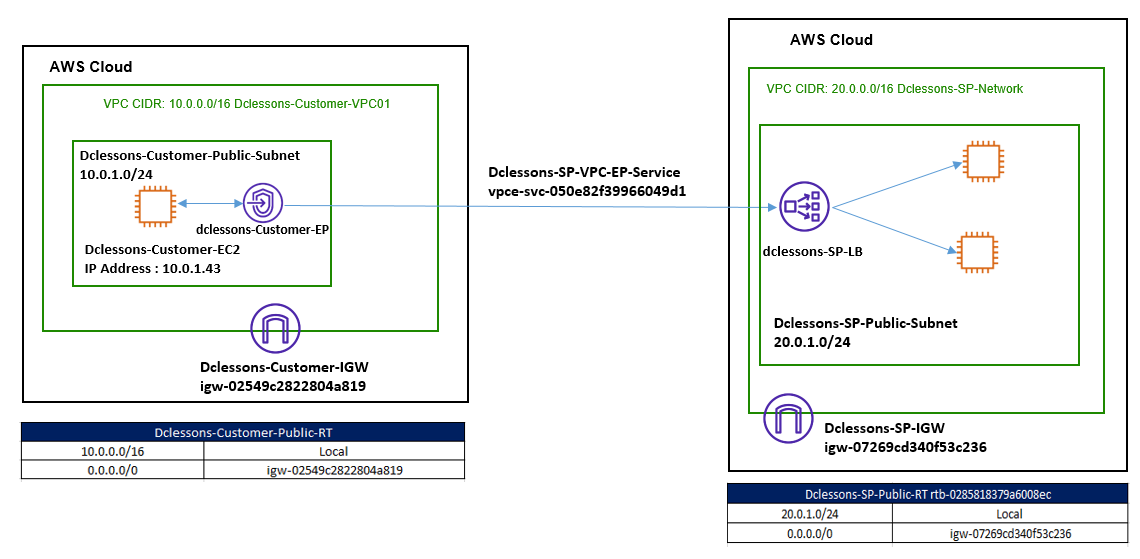

Topology:

Refer below topology to configure VPC Endpoint End to end Service.

Task:

• Create a service provider VPC Dclessons-SP-Network with CIDR: 20.0.0.0/16
• Create and attach an Internet Gateway Dclessons-SP-IGW to VPC Dclessons-SP-Network.
• Create a Public subnet Dclessons-SP-Public-Subnet- (20.0.1.0/24)
• Create a Public Route Table and associate it with the subnet.
• Add the public Route 0.0.0.0/0 to IGW in the Route table in Dclessons-SP-Public-RT.
• Create an EC2 Instances in subnet Dclessons-SP-Public-Subnet.
• Create a Network Load Balancer Dclessons-SP-LB in SP VPC.
• Create an Endpoint service Dclessons-SP-VPC-EP-Service.
• Create a customer VPC Dclessons-Customer-VPC01 with CIDR:10.0.0.0/16.
• Create and attach an Internet Gateway Dclessons-Customer-IGW to VPC Dclessons-Customer-VPC01.
• Create a Public subnet Dclessons-Customer-Public-Subnet (10.0.1.0/24) and Create a Public Route Table Dclessons-Customer-Public-RT and associate it with the subnet.
• Add the public Route 0.0.0.0/0 with target Dclessons-Customer-IGW in the Route table Dclessons-Customer-Public-RT.
• Create an EC2 Instance Dclessons-Customer-EC2.
• Create a VPC Endpoint and connect between Customer and Service Provider VPC.
• Test the connectivity.

Solution:

Create VPC

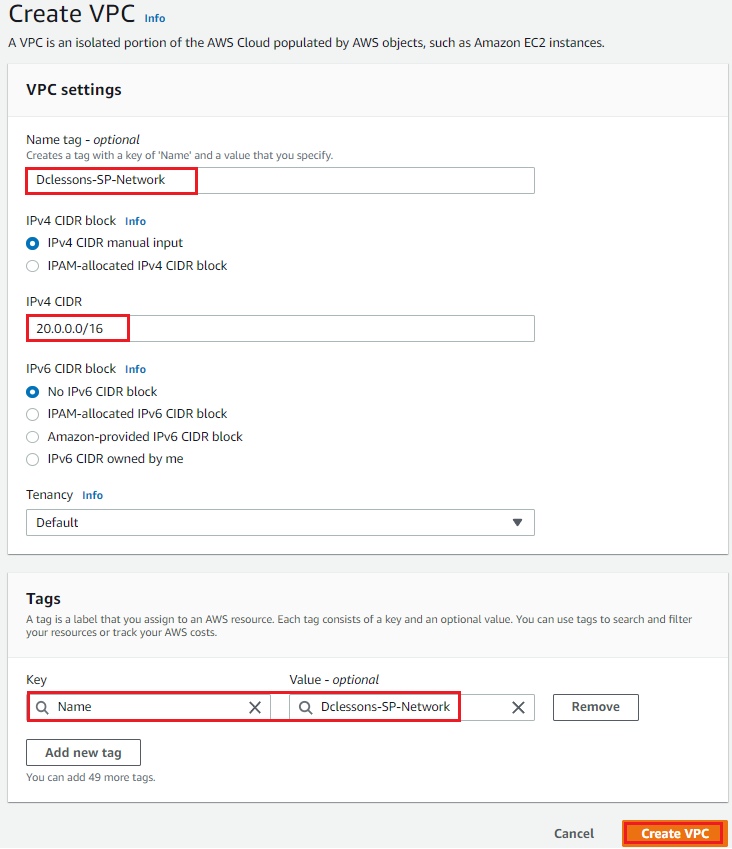

Go to AWS Services | VPC | Create VPC | Under VPC Setting Name: Dclessons-SP-Network with CIDR: 20.0.0.0/16 | Click Create VPC

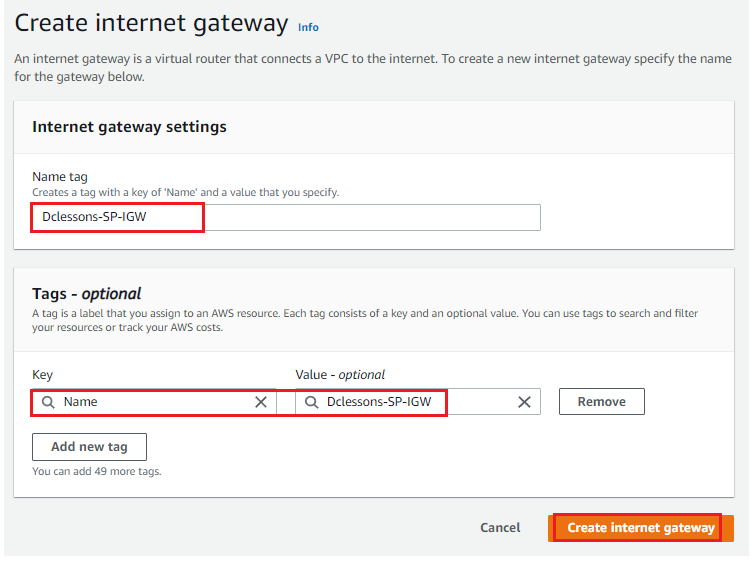

Select Internet Gateway | Create Internet Gateway | Name: Dclessons-SP-IGW | Click Create Internet Gateway

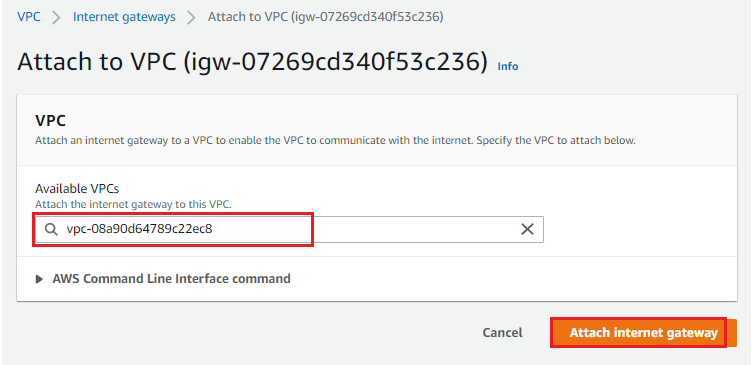

Now attach this IGW to SP VPC , as shown below

Configure SP Subnet

Go to Subnet | Under Create Subnet: Select VPC: Dclessons-SP-Network | Subnet Name: Dclessons-SP-Public-Subnet | AZ: Ohio/us-east-2a with IPv4 CIDR: 20.0.1.0/24

Create Route Table for SP Public Subnet:

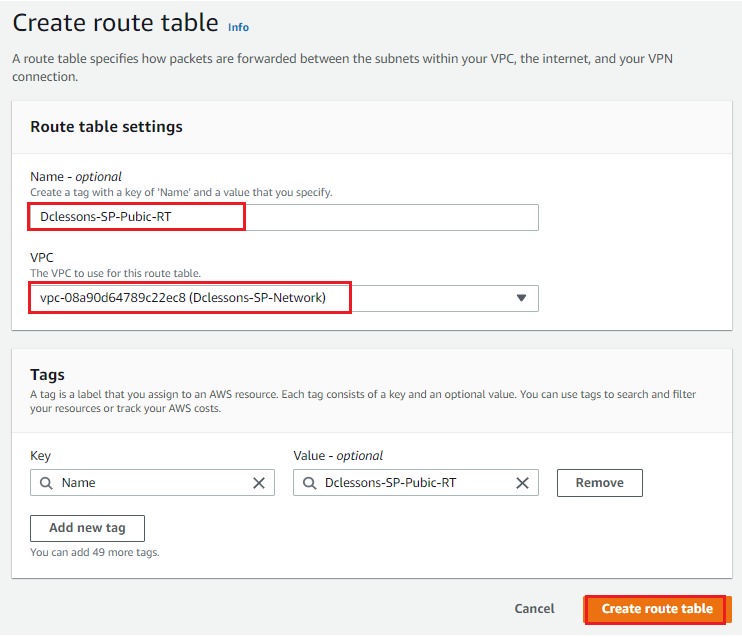

Go to Route table | under create Route Table Name: Dclessons-SP-Public-RT | VPC Name: Dclessons-SP-Network | Click Create Route Table

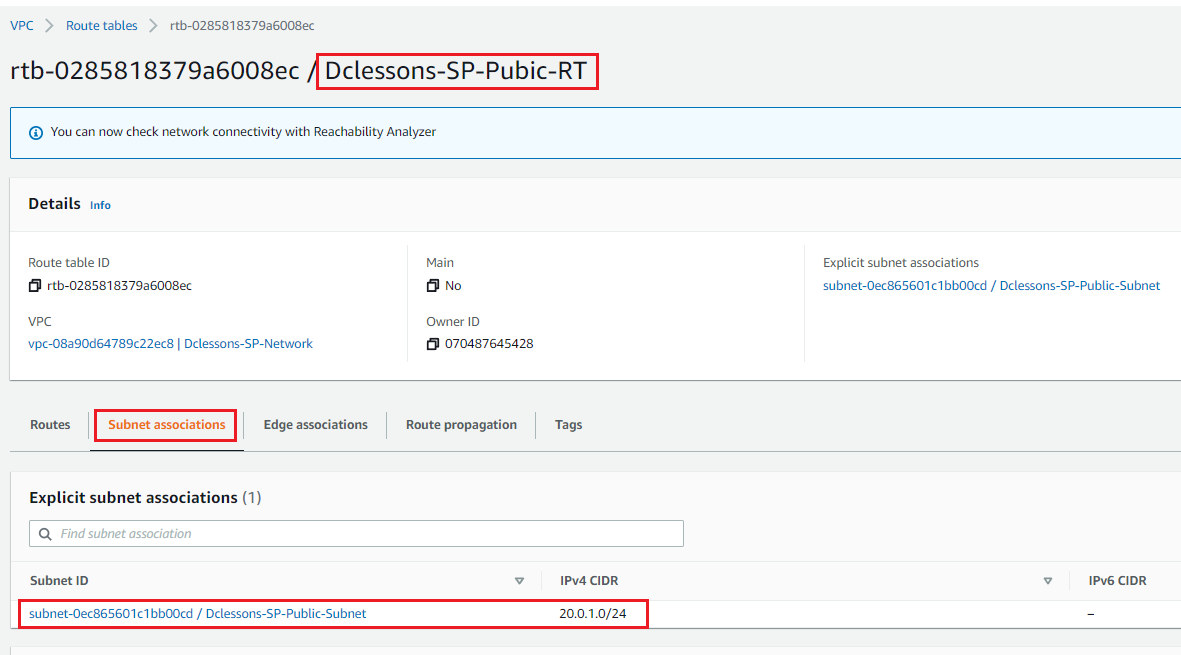

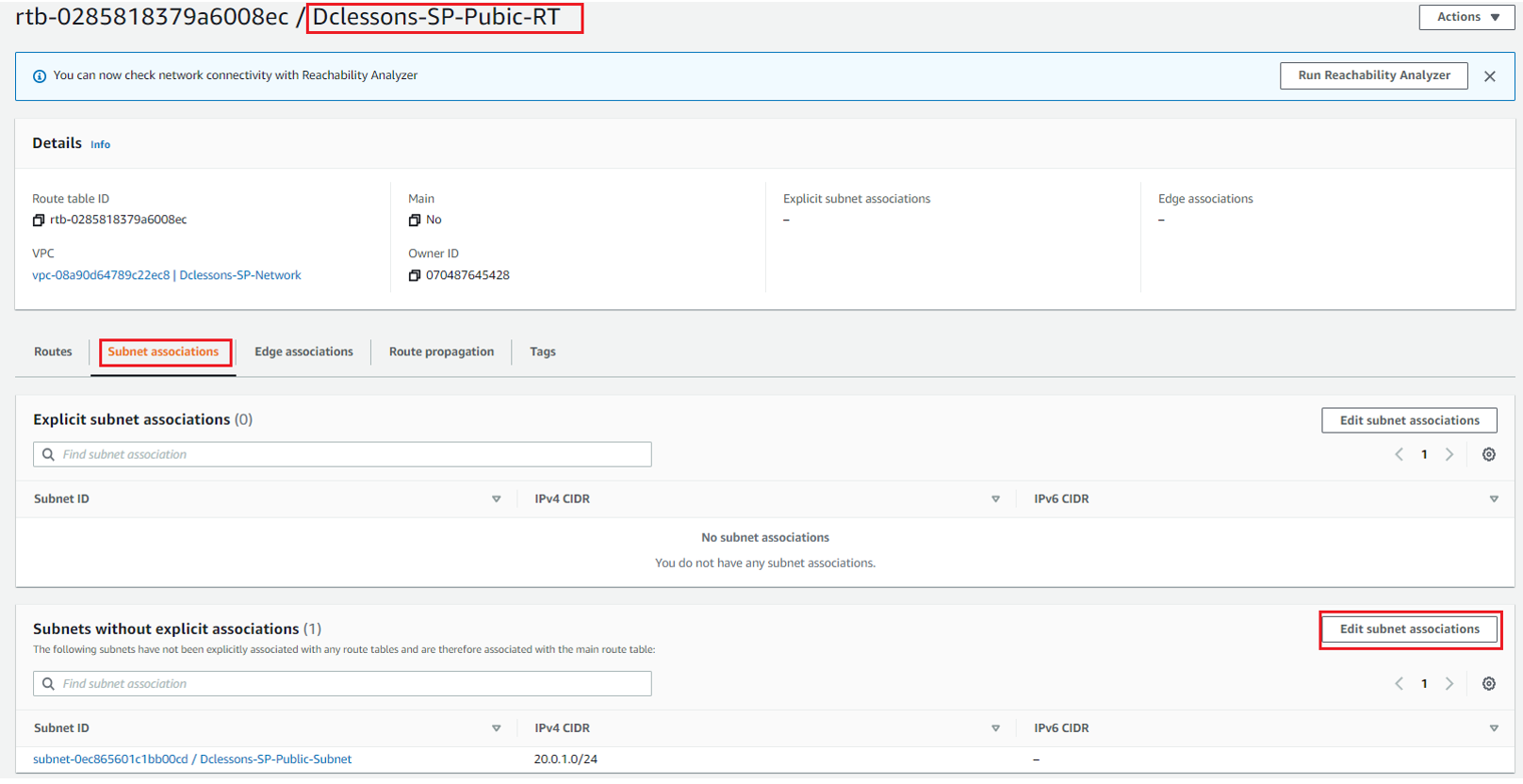

Under Route table: Dclessons-SP-Public-RT, Select Subnet Association : Click Edit Subnet Association:

Select Dclessons-SP-Public-Subnet 20.0.1.0/24 and save

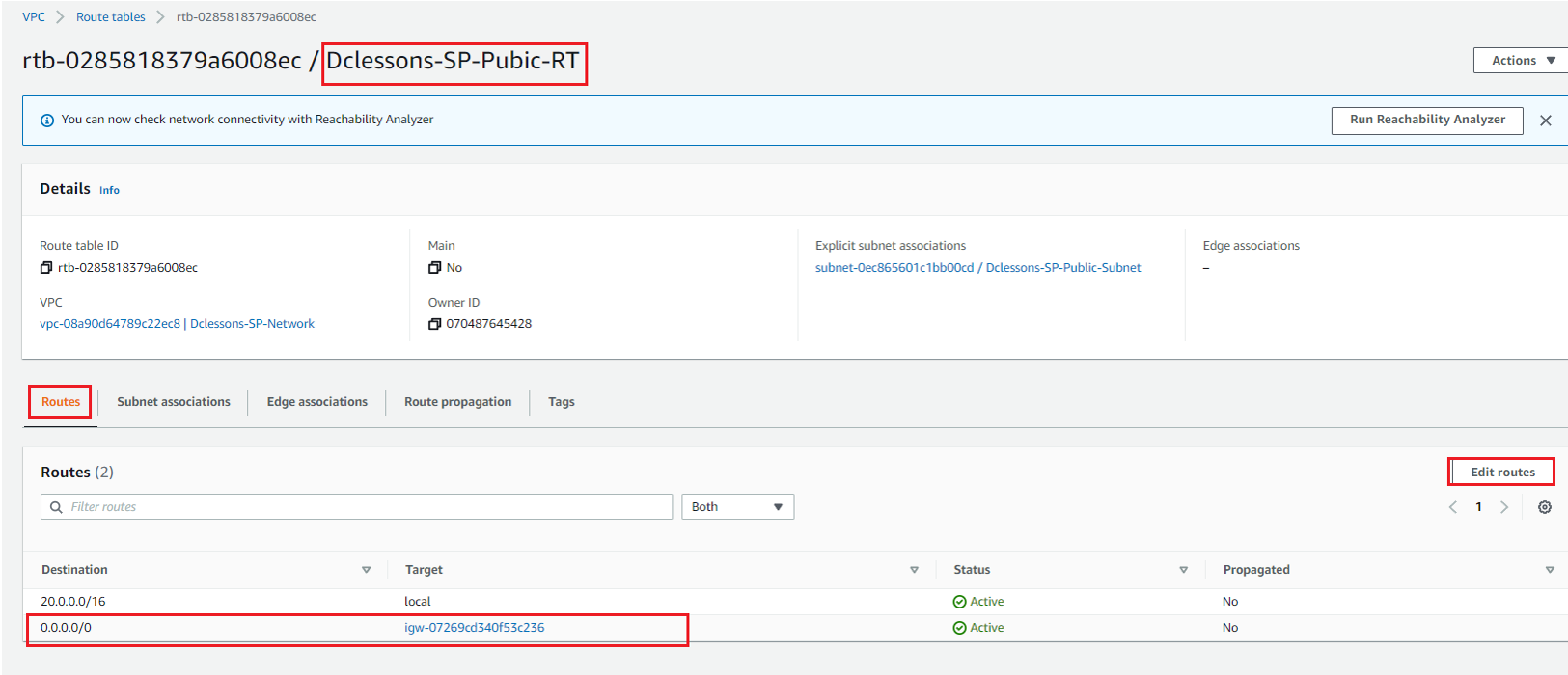

Select Route Tab | Edit Routes | and add 0.0.0.0/0 with target IGW

Configure EC2 instance in SP network:

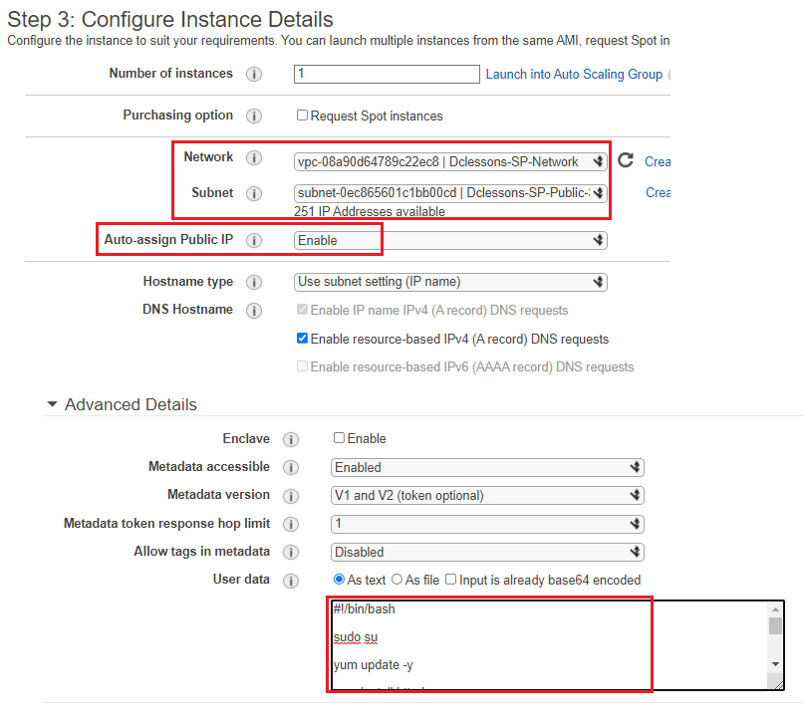

Launch Amazon Linux AMI with t2.micro Instance , refer below figure for configuration. Under Advance Setting | User data filed , provide following code :

#!/bin/bash

sudo su

yum update -y

yum install httpd -y

systemctl start httpd

systemctl enable httpd

echo "Welcome to DCLESSONS Webserver 1" >> /var/www/html/index.html

systemctl restart http

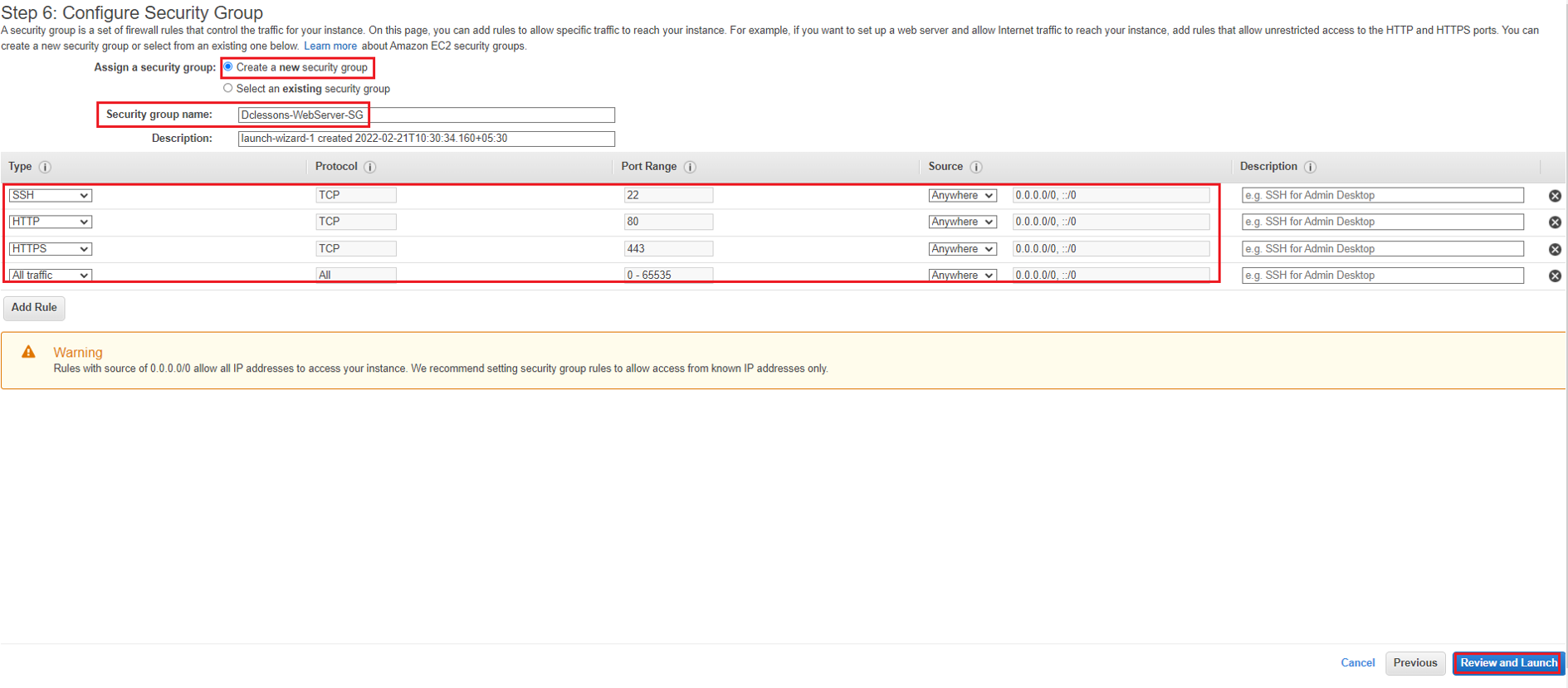

In Security Group Section | Click to create new Security Group and allow all ports and protocols shown in below figure | Click to review and launch

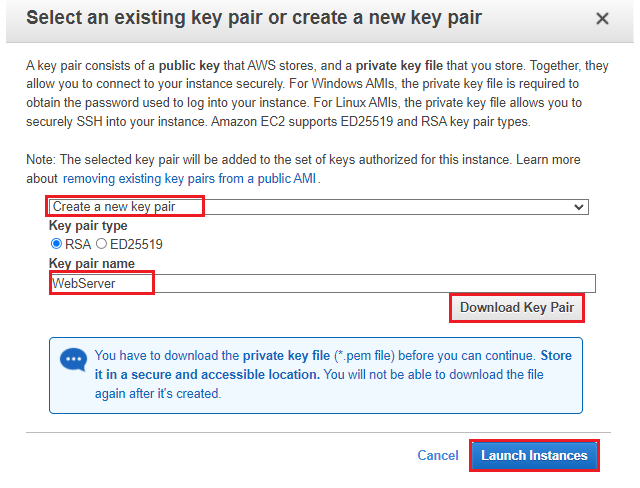

Under key pair section | Select Create a new Key pair | Name: Webserver | Click Download Key pair and Click Launch Instances.

Configure Load balancer

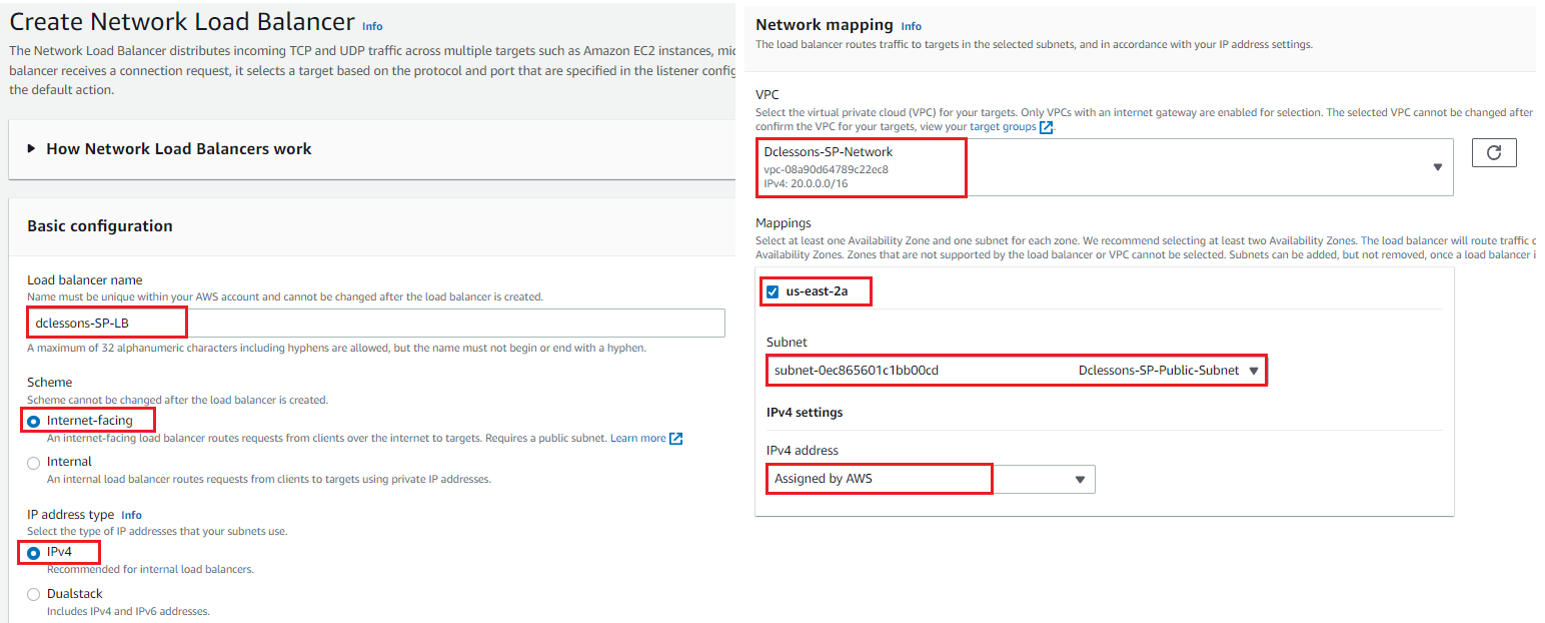

Under VPC | Click on load balancer Section | Click to create Network Load balancer | Under Basic Configuration: Name: Dclessons-SP-LB | Scheme: Internet-facing | IP address: IPv4 | Select VPC: Dclessons-SP-Network | Mapping: us-east2a with subnet: Dclessons-SP-Public-Subnet and IPv4 address: assigned by AWS.

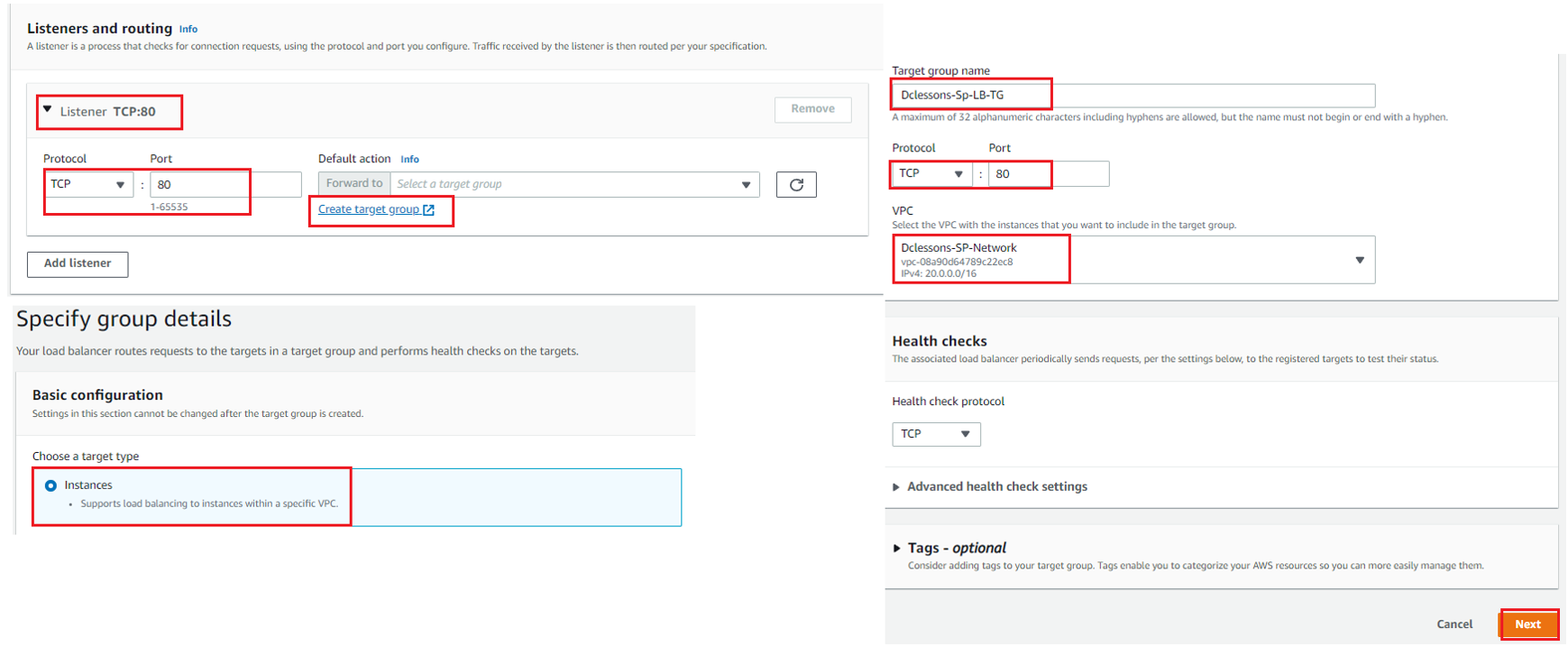

Now Under Listeners and Routing | Select port 80 with protocol: TCP Port 80 and Click Create Target Group

Under Target Group | Name: Dclessons-SP-LB-TG | Select protocol: TCP and Port: 80 and in Listeners section select target group Dclessons-SP-LB-TG

In Health Check Section | Select health Check protocols: TCP and in Specify Group Details option: Select Instances.

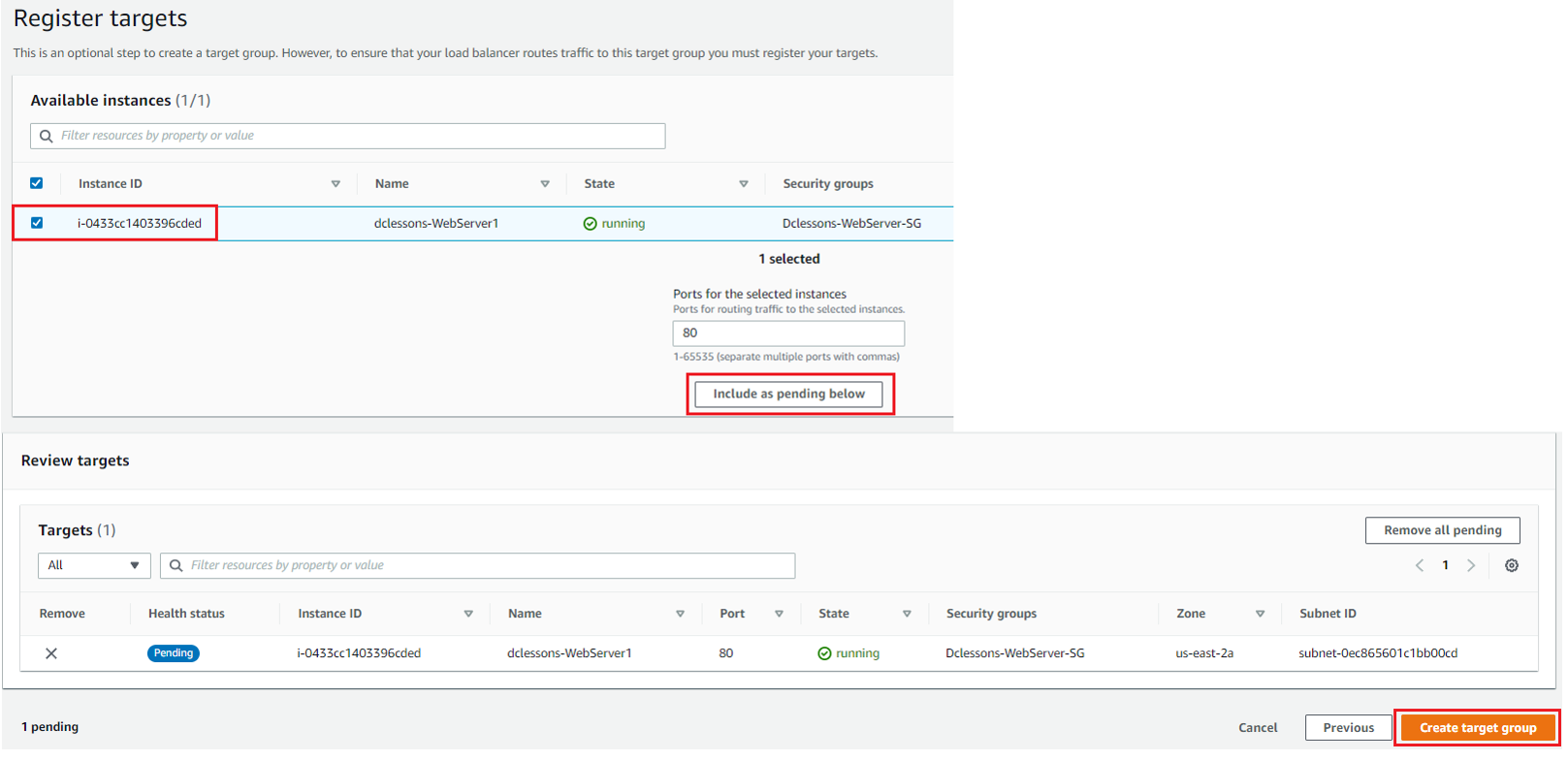

Click Next to go to Register Target Section: Under Register Target, Select Dclessons-Webserver1 Instance | Select: Include as pending below | Click to Create target group.

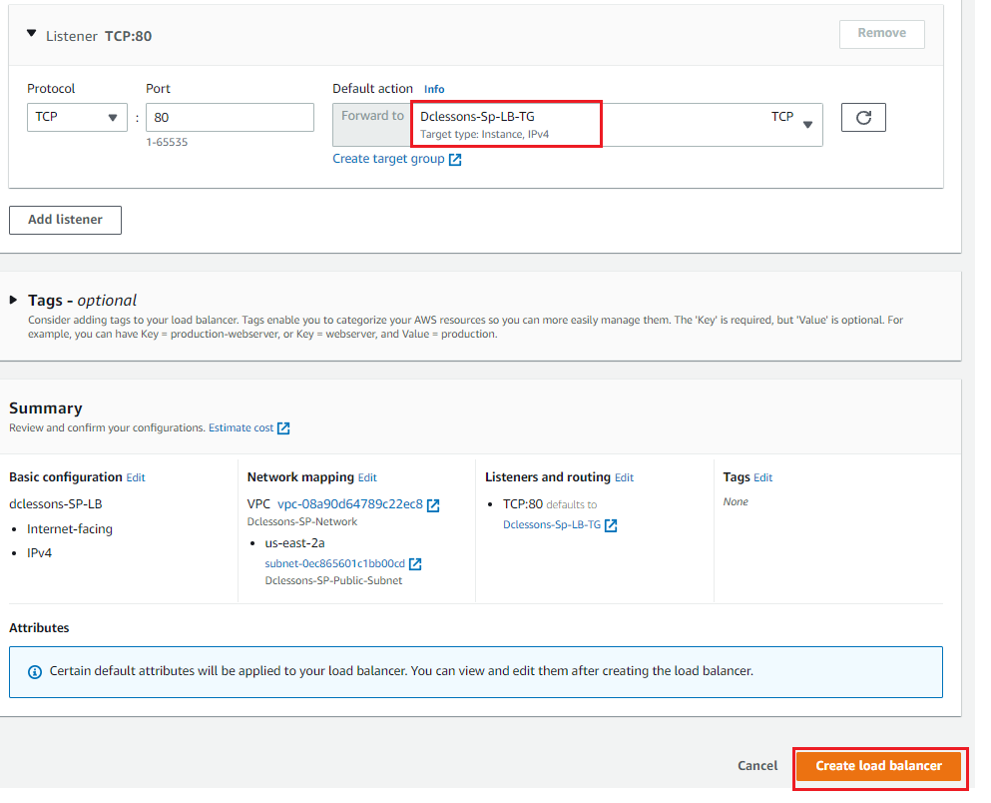

Click Create Load balancer

Now Once LB is created, you can see DNS name ( A record )  has been provided to LB.
