LAB Site-to-Site IPsec VPN With Two FortiGates

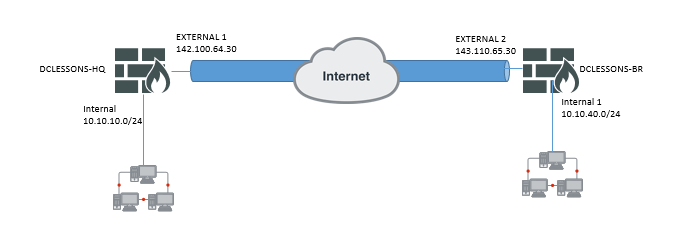

Here we will allow transparent communication between two networks that are located behind different

FortiGates at different offices using route-based IPsec VPN. The VPN will be created on both FortiGates by using the VPN Wizard’s Site to Site – FortiGate template.

In this example, one office will be referred to as HQ and the other will be referred to as Branch.

Step 1: Configuring the HQ IPsec VPN

On the HQ FortiGate device , go to VPN > IPsec Wizard. now select the Site to Site template, and select FortiGate and follow the figure below:


Step2 : Configuring the Branch IPsec VPN

On the Branch FortiGate device, go to VPN > IPsec Wizard. Select the Site to Site template, and select FortiGate .Follow the instruction as per below figure

On either FortiGate on HQ or Branch , go to Monitor > IPsec Monitor and verify the status of the VPN tunnel. Right-click under Status and select Bring Up.
