LAB Creating Security Policies

LAB Creating Security Policies

Posted on Jan 13, 2020 (0)

LAB Creating Security Policies

Task :

In this Three Security policy needs to be configured.

  • Internet: a policy allowing general Internet access to the LAN
  • Mobile: This policy allows Internet access while applying web filtering for mobile devices
  • Admin: a policy allowing the system administrator’s PC to have full access

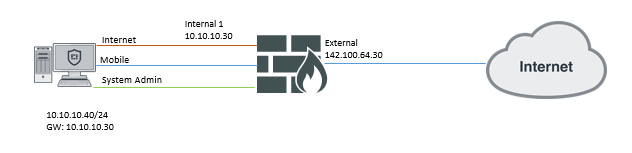

Topology:

Solution:

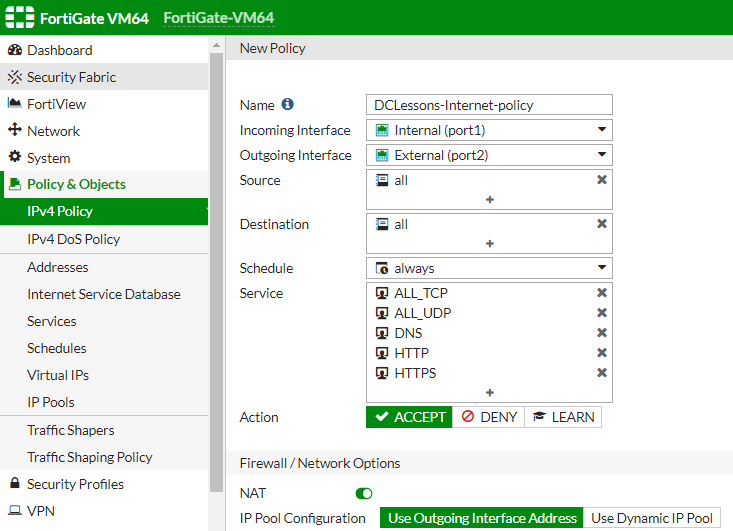

Step1: Configuring the Internet policy

Go to Policy & Objects > IPv4 Policy and edit the policy allowing outgoing traffic.

Step2: Creating the Mobile policy

Go to Policy & Objects > IPv4 Policy and create a new policy. Set Name to Mobile.

Set Incoming Interface to lan, Source Device Type to Mobile Devices (a custom device group that includes tablets and mobile phones), Outgoing Interface to your Internet-facing interface, and Service to HTTP, HTTPS, and DNS.

Step 3: Defining PC policy for admin and full access:

Go to User & Device > Custom Devices & Groups and create a new device. This will identify the system administrator's PC. Select an appropriate Alias, then set the MAC Address. Set the appropriate Device Type.

Step4: Creating the Admin policy

Go to Policy & Objects > IPv4 Policy and create a new policy. Set Name to Admin-policy.

Step5: Ordering the policy table :

To rearrange the policies, select the column on the far left (in the example, Seq.3) and drag the policy to the desired position, as shown on the right.
