SD-WAN Centralized & Localized Control Policy Overview

SD-WAN Centralized & Localized Control Policy Overview

Default Behavior without Centralized Control Policy:

By default, No Centralized control policy is provisioned until or unless it is configured and applied. When there is no Centralized policy, following is the Viptela Control plane device behaves:

• All vEdge routers will sent the route prefixes which it will learn from local site network to vSmart controller via OMP protocols. If vEdge has multiple DTLS Connection to multiple vSmart, it will send OMP information to all vSmart.
• All vEdge will send all TLOC routes to vSmart controller in domain via OPM
• All vEdge Router will send all service Routes to all vSmart via OMP.
• vSmart will accept all these three routes types in route table and then further tracks OMP , TLOC and service Routes to determine to which VPN they belong. Further from these information vSmart will create the Network topology MAP and determine the routing path for data traffic
• vSmart controller will redistribute all these routes in particular VPN to all vEdge router in same VPN.
• vEdge router regularly send route update to vSmart controller
• vSmart will recalculates the routing path, will update its routing table and advertises new and changed routing information to all vEdge routers.

How Behavior Changes with Centralized Control Policy

Following are scenarios where Centralized control policies are required:

• When All routes are not planned to advertised to all vEdge Router
• If Route information is to be modified before advertising by vSmart controller

Once this policy is configured, it is activated by applying it to specific sites in overlay network either in inbound or outbound detection with respect to vSmart controller.

When we apply in inbound direction, modification or filtration of route is being done before keeping in route table of vSmart controller, Accepted routes are installed on route table of vSmart either as received routes or modified routes by control policy.

When policy is applied on outbound direction, Accepted routes are modified by control policy before they are distributed by vSmart controller, routes that are rejected by outbound policy are not advertised.

Control policies have these characteristics:

• They are configured on vManage; enabled and enforced on vSmart controllers.

• They are advertised by using Overlay Management Protocol (OMP).

• Policies filter or modify OMP routing updates sent to WAN Edge devices.

• Control policies change the routing behavior of the entire Cisco Software-Defined WAN (SD-WAN) fabric.

• Control policies are used to enable the following:

  1. Service chaining

  2. Traffic engineering

  3. Extranet VPNs

  4. Service and path affinity

  5. Arbitrary VPN topologies

  6. VPN membership

A control policy is similar to a standard routing policy; it operates on routes and routing information in the control plane of the overlay network. A centralized control policy, which is provisioned on the Cisco vSmart controller, is the Cisco SD-WAN technique for customizing networkwide routing decisions that determine or influence routing paths through the overlay network. A local control policy is provisioned on a Cisco WAN Edge device; it allows customization of routing decisions made by Border Gateway Protocol (BGP), Open Shortest Path First (OSPF), and Enhanced Interior Gateway Routing Protocol (EIGRP) on branch or enterprise networks.

The routing information that forms the basis of a centralized control policy is carried in the Cisco SD-WAN route advertisements, which are transmitted on the Datagram Transport Layer Security (DTLS) or Transport Layer Security (TLS) control connections between Cisco vSmart controllers and Cisco WAN Edge devices. A centralized control policy determines which routes and route information are placed into the centralized route table on the Cisco vSmart controller and which routes and route information are advertised to the Cisco WAN Edge devices in the overlay network. A basic centralized control policy can be used to establish traffic engineering, which sets the path that traffic takes through the network. An advanced control policy supports several features, including service chaining, which allows Cisco WAN Edge devices in the overlay network to share network services, such as firewalls and load balancers.

A centralized control policy affects the OMP routes that are distributed by the Cisco vSmart controller throughout the overlay network. The Cisco vSmart controller learns the overlay network topology from the OMP routes that are advertised by the Cisco WAN Edge devices over the OMP sessions inside the DTLS or TLS connections between the Cisco vSmart controller and the devices.

The following three types of OMP routes carry the information that the Cisco vSmart controller uses to determine the network topology:

• Cisco SD-WAN OMP routes, which are similar to IP route advertisements, advertise routing information that the devices have learned from their local site and the local routing protocols (BGP, OSPF, EIGRP) to the Cisco vSmart controller. These routes are also referred to as vRoutes.

• TLOC routes carry overlay network-specific locator properties, including the IP address of the interface that connects to the transport network, a link color, which identifies a traffic flow, and the encapsulation type. (A transport location or transport locator [TLOC] is the physical location where a Cisco WAN Edge device connects to a transport network. It is identified primarily by IP address, link color, and encapsulation, but several other properties are associated with a TLOC.)

• Service routes advertise the network services, such as firewalls, available to VPN members at the local site.

By default, no centralized control policy is provisioned. Without control policies, all OMP routes are placed in the Cisco vSmart controller's routing table as is, and the Cisco vSmart controller advertises all OMP routes, as is, to all the devices in the same VPN in the network domain.

By provisioning a centralized control policy, you can influence how the OMP routes are added in the Cisco vSmart controller's routing table, how the route information is advertised to the other devices, and whether the OMP routes need to be modified before being put into the routing table or before being advertised.

The Cisco WAN Edge devices place all the route information that is learned from the Cisco vSmart controllers, as is, into their local routing tables, for use when forwarding data traffic. Because the Cisco vSmart controller's role is to be the centralized routing system in the network, Cisco WAN Edge devices can never modify the OMP route information that they learn from the Cisco vSmart controllers.

The Cisco vSmart controller regularly receives the OMP route advertisements from the devices. After recalculating and updating the routing paths through the overlay network, it advertises new routing information to the devices.

The centralized control policy that you provision remains on the Cisco vSmart controller and is never downloaded to the devices. However, the routing decisions that result from centralized control policy are passed to the devices in the form of route advertisements, and so the effect of the control policy is reflected in how the devices direct data traffic to its destination.

Control Polify Application

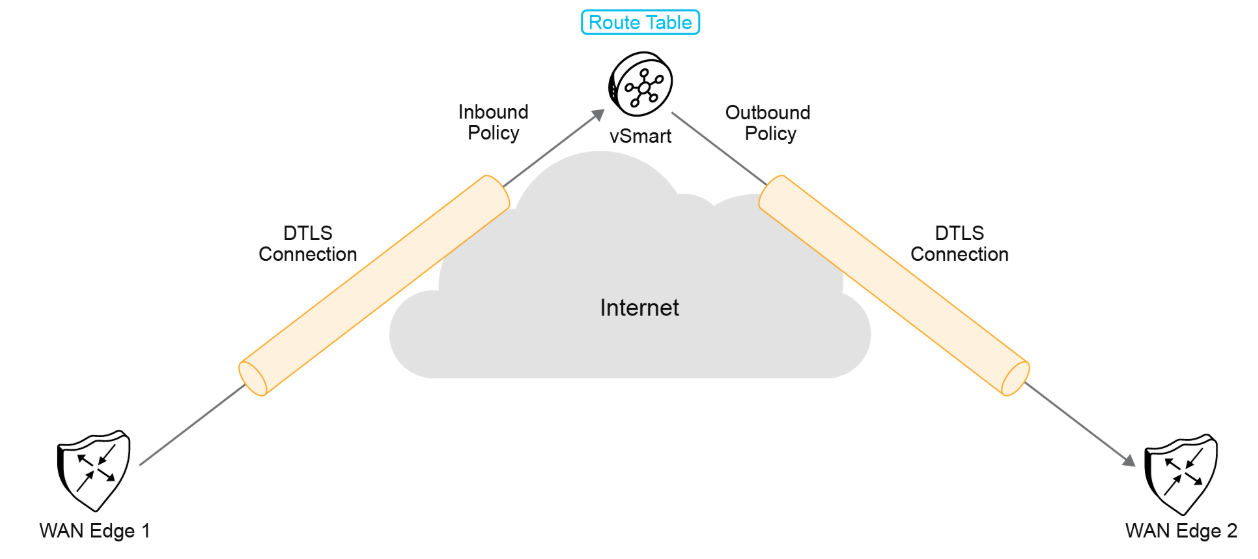

A control policy can be applied both inbound, to the route advertisements that the Cisco vSmart controller receives from the WAN Edge devices, and outbound, to advertisements that it sends to them. An inbound policy controls which routes and route information are installed in the local routing database on the Cisco vSmart controller, and whether this information needs to be installed as-is or needs to be modified. An outbound control policy is applied after a route is retrieved from the routing database, but before a Cisco vSmart controller advertises it, and affects whether the route information is advertised as-is or is modified.

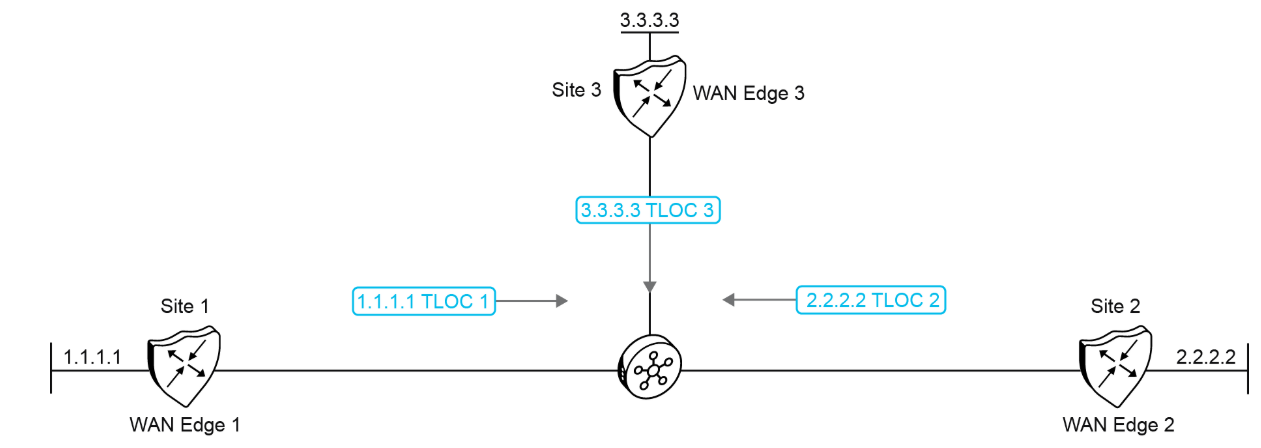

OMP Updates—Direction "Inbound"

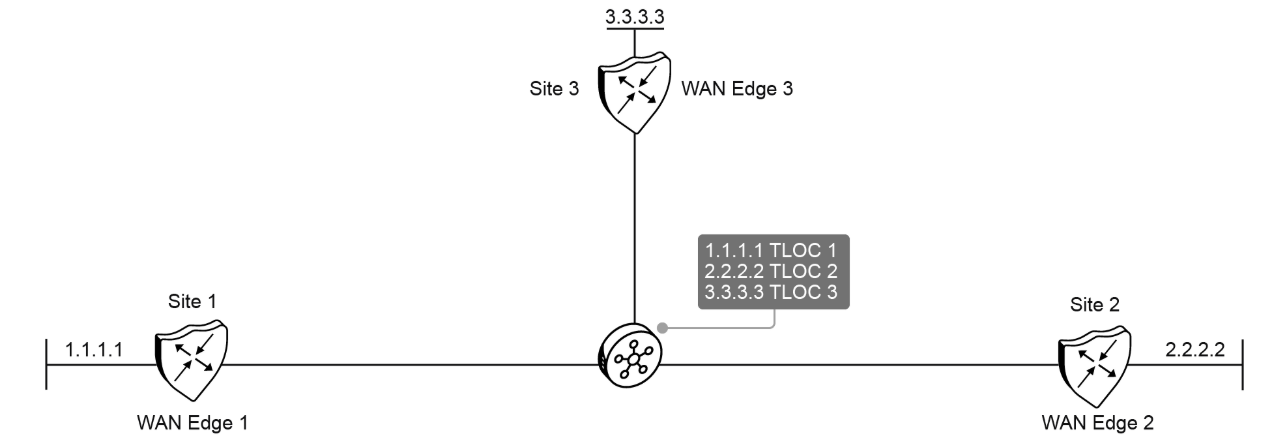

Data in the Cisco vSmart Controller Routing Database

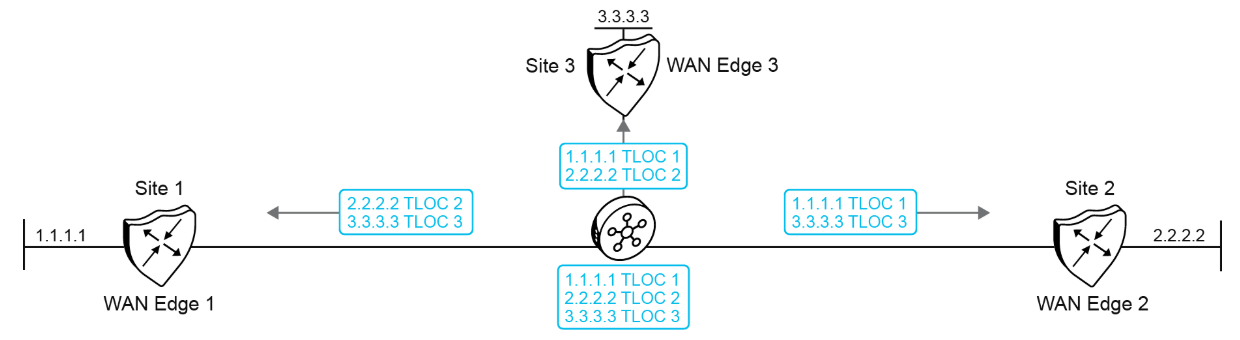

OMP Updates—Direction "Outbound," Without Policy

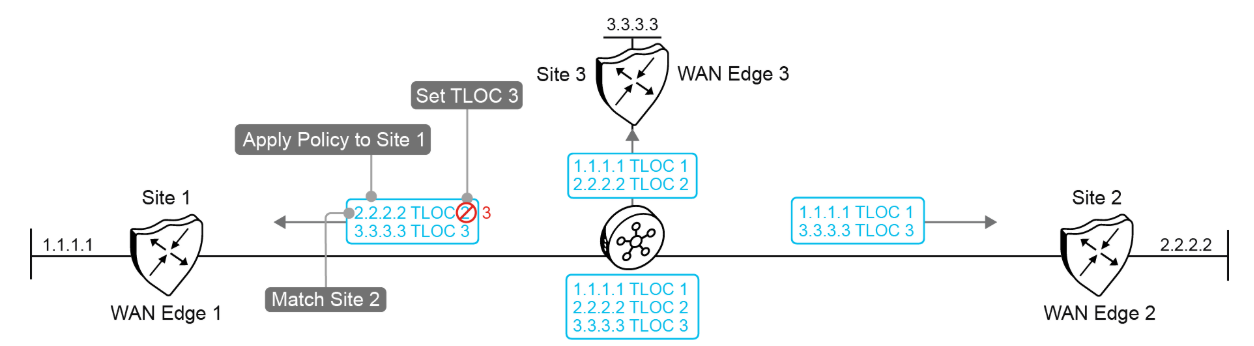

OMP Updates—Direction "Outbound," with Policy

An outbound policy might change the information that is distributed to the WAN Edge devices, and therefore, the view of the network on the WAN Edges. For example, you can use an outbound policy to enforce another topology.

In the example shown in the figure, a centralized control policy is applied to the Cisco vSmart controller as follows:

• The policy applies to Site 1, so announcements to other sites remain unchanged.

• The policy statement matches all announcements of Site 2 networks and changes the TLOC to 3.

The result is that packets from Site 1 to Site 2 are sent to Site 3 instead of directly to Site 2. As an example, you can use this mechanism to perform service insertion of a firewall or other services. Once the packets are inspected at Site 3, the authorized packets can then be forwarded to Site 2.

Examples of Modifying Traffic Flow with Centralized Control Policy

Let see some examples of centralized control policy :
