Instance with Specific IP Address

Instance with Specific IP Address

Posted on Jan 13, 2020 (0)

Instance with Specific IP Address

Task:

  • Create the Virtual interface with specific IP address 808.80.80.11 for Network dclessons_VXLAN_VNI
  • Create the VM instance and attach this Port to MIC of VM via CLI
  • Take all default parameter for creating VM instance.
  • Once completed Verify

Solution:

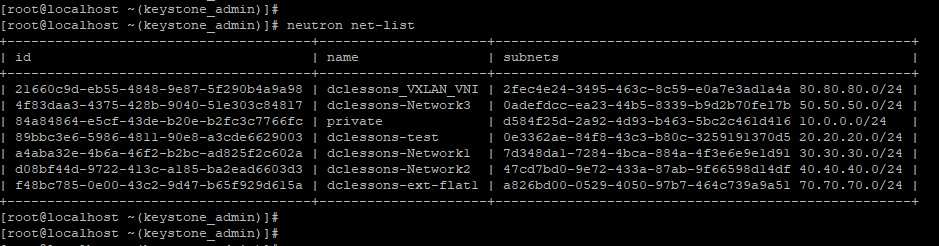

Before doing that , use neutron net-list to get the subnet id of dclessons_VXLAN_VNI that will be used in below commands.

[root@localhost ~(keystone_admin)]# neutron port-create \--name PortWithSpecificIP \--fixed-ip subnet_id=2fec4e24-3495-463c-8c59-e0a7e3ad1a4a,ip_address=80.80.80.11 dclessons_VXLAN_VNI


Now once port is configured use neutron port-list to record the ID of the port:

8f47f965-f26d-4cf1-81a1-c6f3ea475ba8 | PortWithSpecificIP | fa:16:3e:2e:37:82| 80.80.80.11

Now create the nova instance by following command:

[root@localhost ~(keystone_admin)]# nova boot --flavor m1.tiny \--image cirros \--nic port-id=8f47f965-f26d-4cf1-81a1-c6f3ea475ba8 VM-SPECIFIC-IP

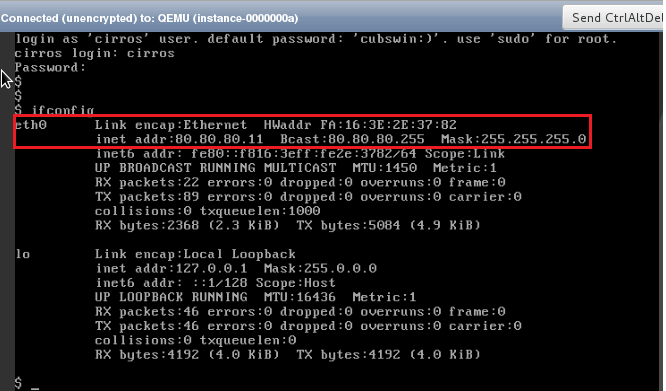

As soon as commands run successfully, you can see the instance in dashboard. Use same method which we have used previously.
